WRAPPING ROBOT FR330 / FR350

Features

  • Dimension:

    1850 mm x 1280 mm

  • Power:

    2 batteries 12V – 110 Ah to maintenance-free gel
    230V simple phase / 1 kW – IP54

  • Accepted file type:

    « cast » or « blown » until 35 µ
    Coil (standard machine), dus diameter 250 mm,
    with Chuck ø 76 mm

  • Autonomy:

    150 / 180 pallets with charged batteries

  • Size min. palette:

    600 mm x 600 mm

  • Maximum pallet height:

    2100 mm

  • Space required:

    1150 mm around the pallet

  • Terms of use:

    5 ~ 45 °C

  • Security:

    Emergency stops are very accessible
    Bumper soft obstacles
    Possibility of placing a flashing light that lights up during the cycle
    Audio signal before the start of the cycle

  • Other:

    Photocell for automatic detection of the height of pallets
    Spool-controlled integrated chain to the mast (maintenance-free)
    Starting and stopping the progressive automatic return of the spool in starting
    position after each cycle
    Speed control by inverter adjustment of film recovery

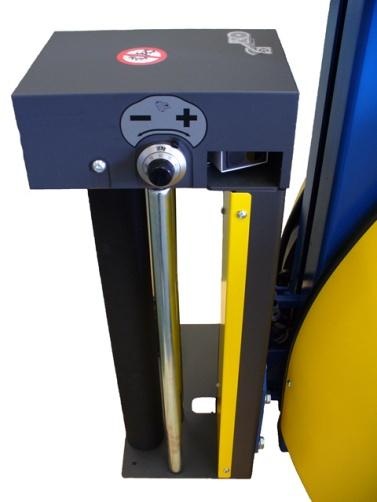

  • Pre-stretching unit:

    Mechanics (20 – 70% tension) – FR330
    Electromagnetic (jusqu’à 100%) – FR350

Category:

Description

PANEL OP1

  • Simple to use, panel equipped with basic functions Emergency stop, start and stop the cycle, ‘reset’
    Setting with potentiometer 4 buttons:
    • of the number of laps up and down
    • the velocities of the robot and the spool
    Program climb/descent

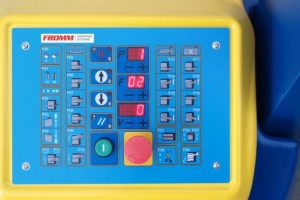

PANNEAU OP2

  • The panel is simple to use. Setting parameters using keys based on a
    microprocessor Control unwanted programs blocked by a password to the parameters of
    established programs Emergency stop, start and stop of the cycle, and stop of the cycle, “reset”
    ability to define:
    • the height of departure and arrival of the spool holder
    • the number of rounds at the bottom and top robots
    • the speed of the spool movement

    Selection of the tension of the film between the paddle and the
    Selection of the pre-stretching trolley between two rolls of the trolley





BENEFITS

  • Stabilization of the pallet in less than 1 minute
  • The panel operator is simple, accessible, and easy to use.
  • A sound level of less than 80 dB with the film “Cast”
  • arm to easily maneuver the robot on the front and rear
  • Steering wheel adjustable height
  • ability to move the robot with an elevator
  • can be used with Panel Operators OP1 and OP2.
  • Certified CE



OPTIONS FOR ROBOT FR39X / FR40X

  • Specific photocell for stretch wrapping product dark
  • The height of the pallet available is 2500 and 2800 mm
  • Traction battery (x1) 24 volt – 110 Ah.
