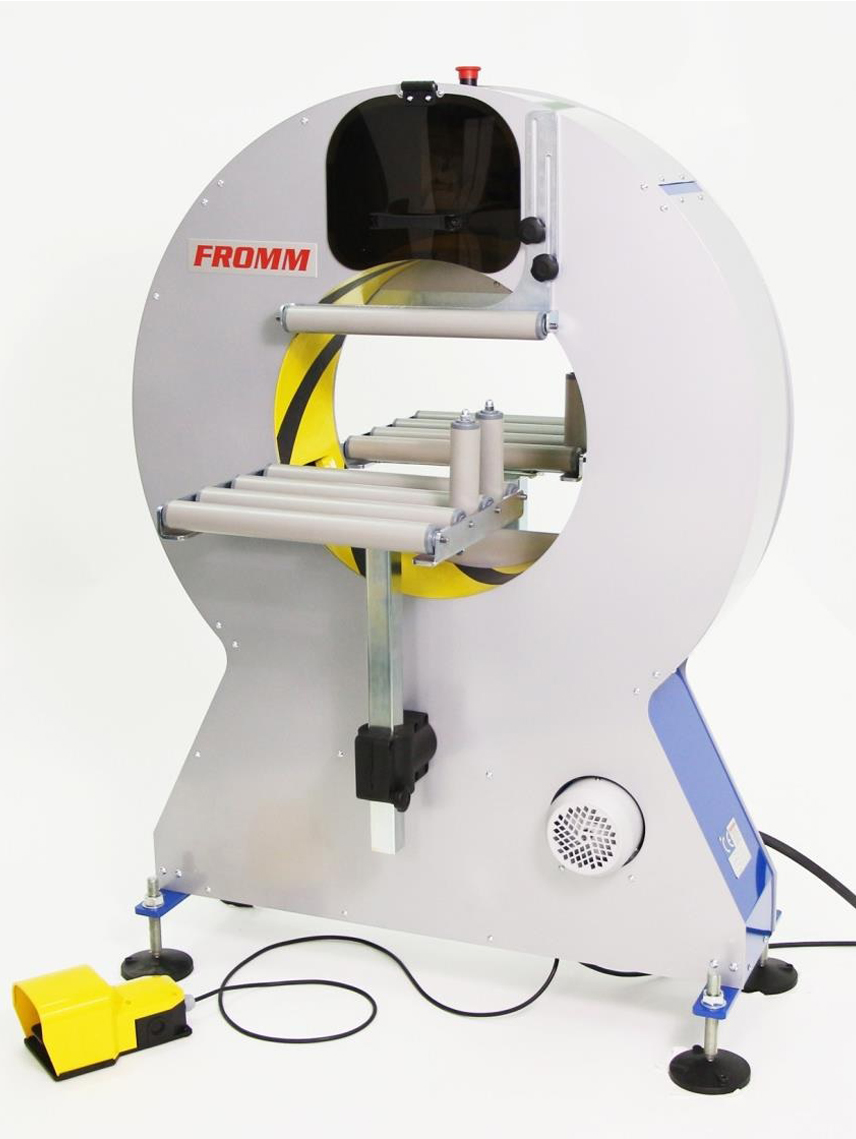

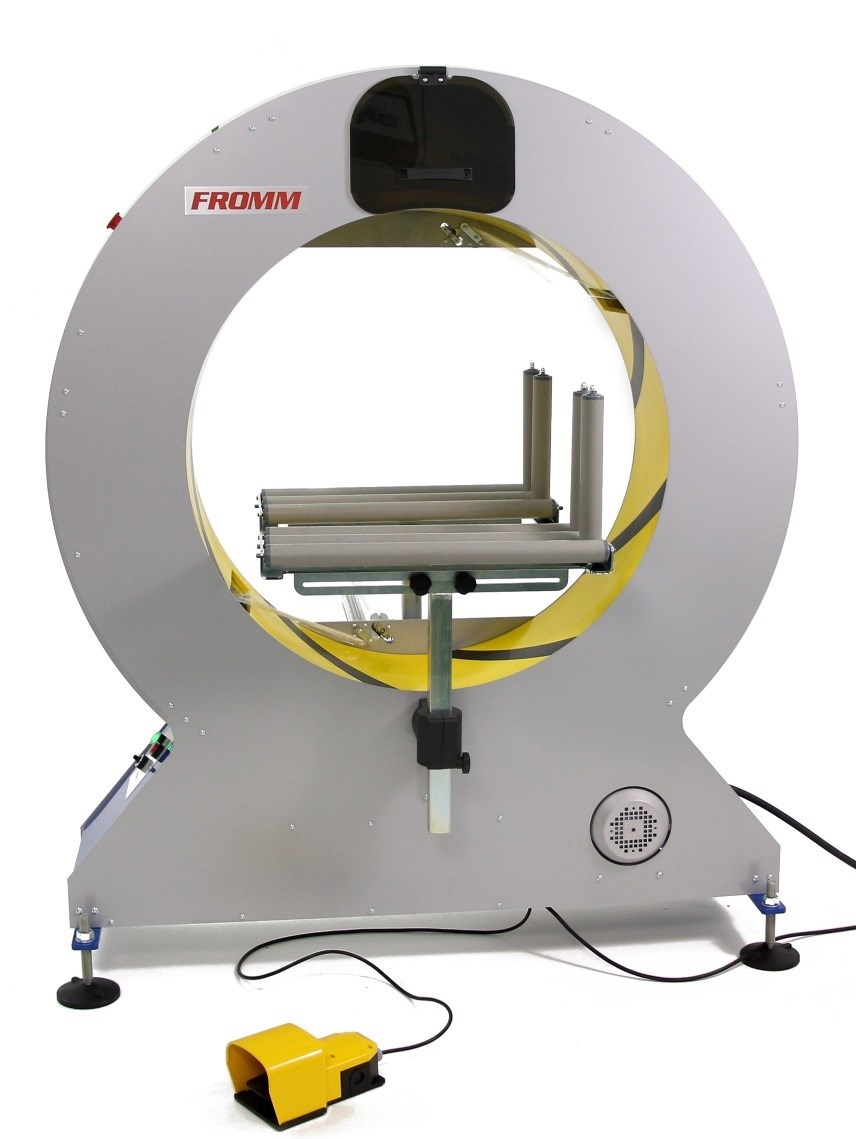

FV300 Semi-automatic orbital wrapping machine

Advantages

  • CE certified
  • Proven quality with competitive price
  • Easy operation, simple maintenance
  • In various inner ring diameters available

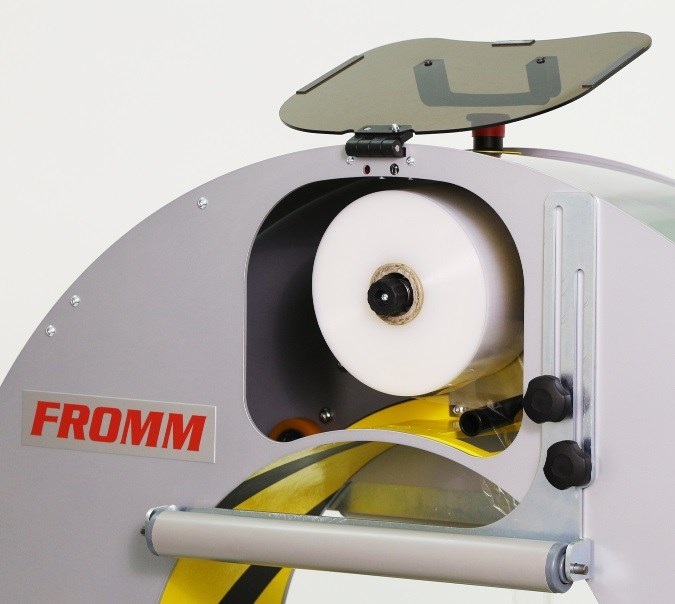

  • Double film reel dispenser
  • Safety foot switch
  • Ring protection
  • Adjustable stretch film tension
  • Adjustable ring speed
  • Various optional features, i.e.  Automatic film cutter and  Top press



Description

Semi-automatic orbital film wrapping machine

The FV300 is an easy to use semi automatic machine with double film reel system. This machine, produced in the EU, offers you a highly comparable price/performance ratio.

Features

  • CE certified
  • Proven quality with competitive price
  • Easy operation, simple maintenance
  • Various inner ring diameters available
  • Double film reel dispenser
  • Safety foot switch
  • Ring protection
  • Adjustable stretch film tension
  • Adjustable ring speed
  • Various optional features available

Technical Data

Ring diameters 50/90/125/160/200/250
Film quality 17, 20, 23 or 30 mµ
Film reel dimensions 100, 170, 250 mm
Ring speed 5 to 350 rpm
Speed inverter & PLC Fuji / Omron
Power supply 230V / 50/60Hz
Power consumption 0.26—0.55 kWh
Pneumatic pressure 6 bars (for optional film cutter)
