Igbt Inverter Dc Arc Welding Machine – DC-205 WELD UP TO 4.0mm

MODEL DC-205
Input power voltage (V) AC220 ±15% (1 Ph)
Input power capacity (KVA) 9.4
Input voltage frequency (Hz) 50/60
No load voltage (V) 70
Output current (A) 10-200
Arc force current (A) 11-50
Output voltage (V) 28
Duty cycle (%) 60
Insulation class F
Weight (kg) 8.2
Dimensions (mm) 372 x 220 x 150
Protection class IP21



OPTIONAL :
– Scratch TIG Torch
– Earth Clamp
– Welding Cable
– Electrode Holder
– Argon Regulator
– Current Remote Controller



AVAILABLE ACCESSORY :
Standard 3m 300amps Electrode Holder & Earth Clamp With Cable Connector Standard 2 Pcs





Inverter Dc Arc Welding Machine – Real Force ARC-400H High Voltage 440

MODEL ARC-400H
Input power voltage (V) AC440 ±15% (3 Ph)
Input power capacity (KVA) 12.3
Input voltage frequency (Hz) 50/60
No load voltage (V) 60
Output current (A) 20-380
Arc force current (A) 0-200
Output voltage (V) 25.2
Duty cycle (%) 60
Efficiency (%) 85
Insulation class F
Weight (kg) 25
Dimensions (mm) 565x 306 x 432
Protection class IP21S
Weldable (mm) 2.5 – 4.0



OPTIONAL :
– Electrode Holder
– Earth Clamp
– Welding Cable
– Scratch TIG Torch
– Argon Regulator
– Current Remote Controller



AVAILABLE ACCESSORY :
– Cable Connector Standard 2 pcs 35/50

INVERTER DC ARC WELDING MACHINE – ARC-400

MODEL ARC-400
Input power voltage (V) AC415 ±15% (3 Ph)
Input power capacity (KVA) 12.3
Input voltage frequency (Hz) 50/60
No load voltage (V) 60
Output current (A) 20-380
Arc force current (A) 0-200
Output voltage (V) 25.2
Duty cycle (%) 60
Efficiency (%) 85
Insulation class F
Weight (kg) 25
Dimensions (mm) 565x 306 x 432
Protection class IP21S
Weldable (mm) 2.5 – 4.0



OPTIONAL :
– Electrode Holder
– Earth Clamp
– Welding Cable
– Scratch TIG Torch
– Argon Regulator
– Current Remote Controller



AVAILABLE ACCESSORY :
– Cable Connector Standard 2 pcs 35/50

Anti Rust Structure & Weatherproof Sries – Arc-500X3

MODEL ARC-500X3
Rated Input Voltage AC (V) 415V
Power Frequency (HZ) 50/60
Rated Input Capacity (KVA) 25×3
Output No Load Voltage (V) 75±5
Current Adjusting Range (A) 20-500
Thrust Current Adjusting Range (A) 10-280
Guide Arc Current Adjusting Range (A) 20-200
Rated Duty-Cycle (%) 60
Weight (kg) 155
Overall Dimensions, mm (L/W/H) 870/405/1080



OPTIONAL :
– Electro Holder
– Earth Clamp
– Welding Cable
– Scratch Tig Torch
– Argon Regulator
– Current Remote Controller



AVAILABLE ACCESSORY :
– Cable Connector Standard 2 Pcs 35/50

DC Arc Welding Machine – ARC-250

MODEL ARC-250
Input power voltage (V) AC415 ± 15% (3 Ph)
Input power capacity (KVA) 8.3
Input voltage frequency (Hz) 50/60
No load voltage (V) 67
Output current (A) 20 – 225
Arc force current (A) 0.60
Output voltage (V) 29
Duty cycle (%) 60
Efficiency (%) 85
Insulation class F
Weight (kg) 17.2
Dimensions, mm (L/W/H) 480/205/355
Protection class IP21S
Weldable (mm) 2.5 – 4.0



OPTIONAL :
– Electrode Holder
– Earth Clamp
– Welding Cable
– Scratch TIG Torch
– Argon Regulator
– Current Remote Controller



AVAILABLE ACCESSORY :
– Cable Connector standard 2pcs 35/50

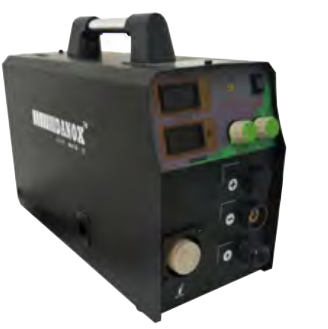

Danox Welding Machine Arc-120

Description :

Danox ARC-120 (1ph / 230V) DC inverter are welding machine c/w:
• Electrode holder with 3m cable & male plug 10-25mm
• Earth clamp with 3m cable & male plug 10-25mm

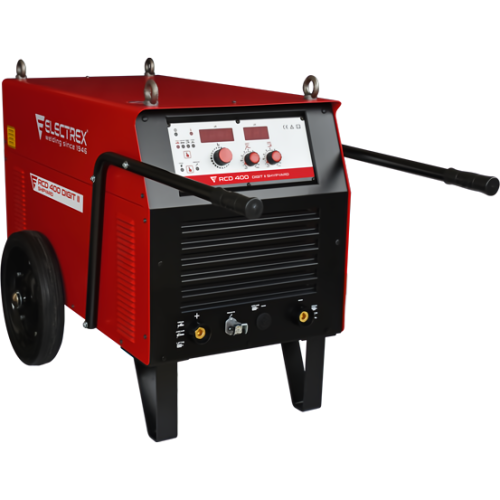

Welding Rectifier – RCD 400 DIGIT II

MODEL RCD 400 DIGIT II
Input Voltage (V) 3×400 (±10%)
Input voltage frequency (Hz) 50/60
Input power capacity (KVA) 31
Arc Force Current (A) 0-200
Output current (A) 400
Duty Cycle (%) 60
Weight (Kg) 180
Dimensions (mm) 780 x 670 x980
Electrodes Ø 7,0mm

Welding Rectifer – RCD 600 DIGIT II

MODEL RCD 400 DIGIT II
Input Voltage (V) 3×400 (±10%)
Input voltage frequency (Hz) 50/60
Input power capacity (KVA) 46
Arc Force Current (A) 0-200
Output current (A) 600
Duty Cycle (%) 60
Weight (Kg) 220
Dimensions (mm) 780 x 670 x 980
Electrodes Ø 8,0mm
Protection Class IP21S

Micro Inverter Welding – 1600

Product Details
Input Voltage (V) 1x230V (±10%)
Input Power (KVA) 5.5
Frequency (Hz) 50/60
Output Current (A) 160
Arc Force Current (A) 0-200
Duty Cycle (%) 60
Weight (Kg) 6.5
Dimensions (mm) 320 x 150 x 255

Micro Inverter welding – 1900

Product Details
Input Voltage (V) 1x230V (±10%)
Input Power (KVA) 6.2
Frequency (Hz) 50/60
Output Current (A) 190
Arc Force Current (A) 0-200
Duty Cycle (%) 60
Weight (Kg) 9.5
Dimensions (mm) 320 x 150 x 255
Protection class IP21

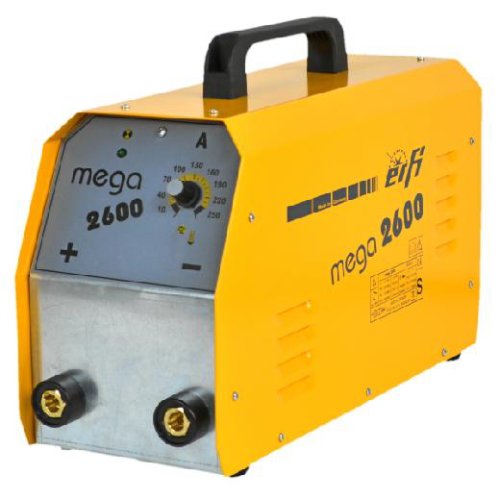

Erfi Mega Inverter – 2600

Product Details
Input Voltage (V) 1x230V (±10%)
Input Power (KVA) 10.4
Frequency (Hz) 50/60
Output Current (A) 260
Arc Force Current (A) 0-200
Duty Cycle (%) 60
Weight (Kg) 9.5
Dimensions (mm) 490 x 180 x 330
Protection class IP23

Portable Mini Mig/Arc – MIG 200MA

Product Details
Input Voltage (V) AC220V ±15%
Input Power (KVA) 0.85
Frequency (Hz) 50/60
Output Current (A) 20-200
Arc Force Current (A) 27.6
Duty Cycle (%) 60
Weight (Kg) 9.8
Dimensions (mm) 410 x 175 x 265
Protection class IP21S

Inverter Welding Machine – MIG 200S

Product Details
Input Voltage (V) AC220V ±15%
Input Power (KVA) 6.4
Frequency (Hz) 50/60
Output Current (A) 50-200
Input Current (A) 29
Duty Cycle (%) 60
Weight (Kg) 24
Dimensions (mm) 550 x 285 x 500
Inverter Technology IGBT

Inverter Welding Machine – MIG 350I

Product Details
Input Voltage (V) AC415V ±15%
Input Power (KVA) 14.4
Frequency (Hz) 50/60
Output Current (A) 60-350
Input Current (A) 22
Duty Cycle (%) 60
Weight (Kg) 38
Dimensions (mm) 515 x 263 x 440

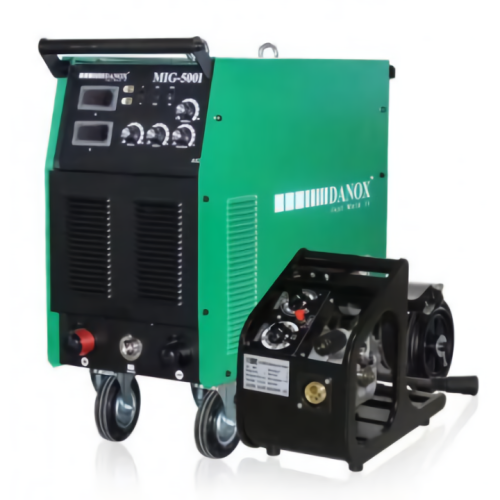

Inverter Welding Machine – MIG 500I

Product Details
Input Voltage (V) AC415V ±15%
Input Power (KVA) 25
Frequency (Hz) 50/60
Output Current (A) 60-500
Input Current (A) 38
Duty Cycle (%) 60
Weight (Kg) 52
Dimensions (mm) 865 x 302 x 660
Protection class Ip21s

Inverter Welding Machine – MIG 500SDF

Product Details
Input Voltage (V) AC415 ±15%
Input Power (KVA) 25
Frequency (Hz) 50/60
Output Current (A) 25-500
Input Current (A) 46
Duty Cycle (%) 60
Weight (Kg) 85
Dimensions (mm) 1010 x 370 x 875
Protection class Ip21

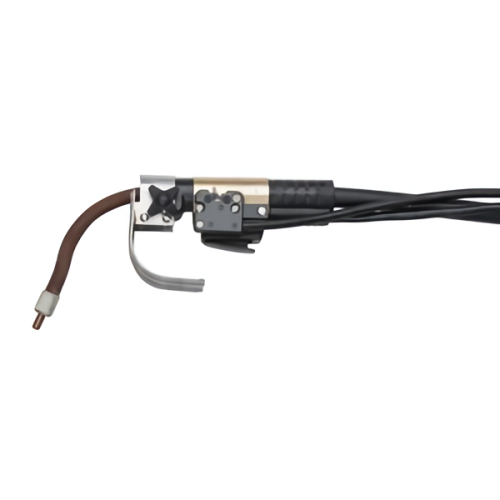

Welding Torch – LN-23P

Features  Welding Torch – LN-23P
1 A number of models are offered for amperage ratings from 350 to 600 amps.
2 Self-shielded flux-cored welding guns are rugged and reliable while remaining lightweight, flexible, and maneuverable
3 The electrode and control cable quickly connect to the power source
4 Equipped with a trigger interlock circuit to reduce operator fatigue.
5 A completely enclosed wire reel keeps the wire free of contaminants.
6 Weighs less than 50 lbs. (22.7 kg) including optional Magnum Innershield gun and 14 lb. (6.3 kg) coil of electrode
7 Continuous wire feed speed control, voltage control, and analog voltmeter are standard

Welding Machine MIG 356 M LTRONIC SYNERGIC

Product Details
Input Voltage (V) 3×400 ±10%
Dimensions (MM) 1390 x 410 x 940
Frequency (Hz) 50/60
Output Current (A) 30-300
Duty Cycle (%) 60
Weight (Kg) 128
Protection Class IP 21S

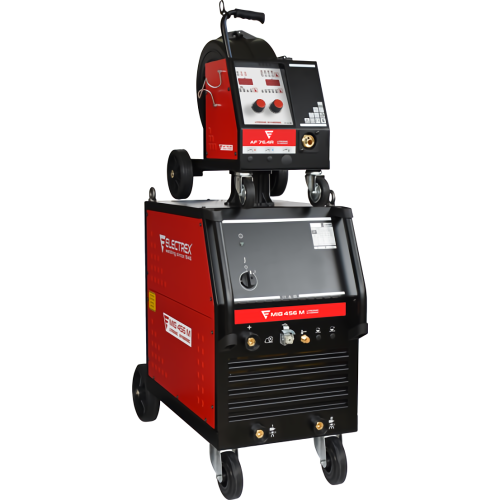

Welding Machine MIG 456 M LTRONIC SYNERGIC

Product Details
Input Voltage (V) 3×400 ±10%
Dimensions (MM) 1390 x 410 x 940
Frequency (Hz) 50/60
Output Current (A) 35-450
Duty Cycle (%) 60
Weight (Kg) 151
Protection Class IP 21S

Welding Machine MIG 306 C DIGIT II

Product Details
Input Voltage (V) 3×400 ±10%
Dimensions (MM) 750 x 370 x 770
Frequency (Hz) 50/60
Output Current (A) 30-300
Duty Cycle (%) 60
Weight (Kg) 89
Protection Class IP 21S

Welding Machine Mig 356 M Digit II

Product Details
Input Voltage (V) 3×400 ±10%
Dimensions (MM) 1390 x 410 x 940
Frequency (Hz) 50/60
Output Current (A) 30-300
Duty Cycle (%) 60
Weight (Kg) 128
Protection Class IP 21S

Welding Machine Mig 406 M Digit II

Product Details
Input Voltage (V) 3×400 ±10%
Dimensions (MM) 1340 x 410 x 960
Frequency (Hz) 50/60
Output Current (A) 30-400
Duty Cycle (%) 60
Weight (Kg) 126.5
Protection Class IP 21S

Welding Machine Mig 506 M Digit II

Product Details
Input Voltage (V) 3×400 ±10%
Dimensions (MM) 1460 x 510 x 1050
Frequency (Hz) 50/60
Output Current (A) 42-500
Duty Cycle (%) 60
Weight (Kg) 184.5
Protection Class IP 21S

MIG 656 M W DIGIT II

Product Details
Input Voltage (V) 3×400 ±10%
Dimensions (MM) 1460 x 510 x 1050
Frequency (Hz) 50/60
Output Current (A) 50-650
Duty Cycle (%) 60
Weight (Kg) 225.5

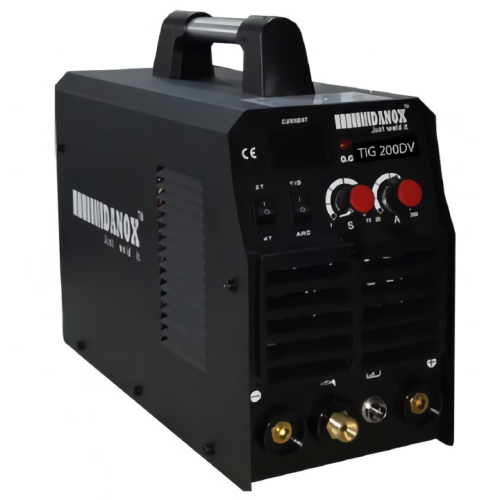

Power Tig Welding Machine – TIG 200DV

Product Details
Input Voltage (V) AC110/220 ±15%
Input Power (KVA) 4.5
Frequency (Hz) 50/60
Output Current (A) 10-200
Duty Cycle (%) 60
Weight (Kg) 8
Dimensions (mm) 225.5
Dimensions (mm) 371 x 155 x 295

Power Tig Welding Machine – TIG 200P

Product Details
Input Voltage (V) AC220 ±15%
Input Power (KVA) 4.6
Frequency (Hz) 50/60
Output Current (A) 5-200
Duty Cycle (%) 60
Weight (Kg) 13.2
Dimensions (mm) 425 x 205 x 355

Power Tig Welding Machine – TIG 200ACDC

Product Details
Input Voltage (V) AC220 ±15%
Input Power (KVA) 4.5
Frequency (Hz) 50/60
Output Current (A) 20-200
Duty Cycle (%) 60
Weight (Kg) 22.1
Dimensions (mm) 493 x 330 x 320

PowerTig Welding Machine – TIG 315P ACDC

Product Details
Input Voltage (V) AC380 ±15%
Input Power (KVA) 9.1
Frequency (Hz) 50/60
Output Current (A) 5-310
Duty Cycle (%) 60
Weight (Kg) 34
Dimensions (mm) 580 x 334 x 480

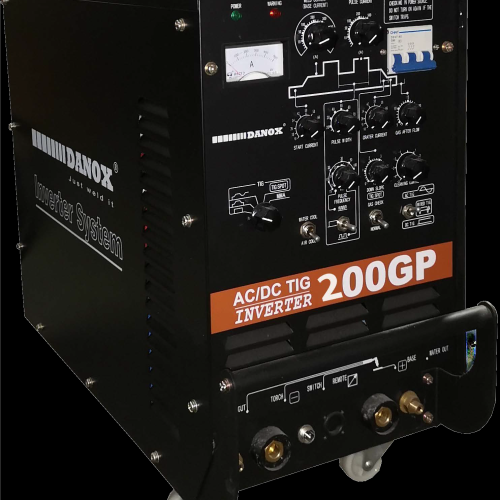

Power Tig Welding Machine – TIG 200 GP ACDC

Product Details
Input Voltage (V) AC220 ±15%
Input Power (KVA) 4.8
Frequency (Hz) 50/60
Output Current (A) 20-200
Duty Cycle (%) 85
Weight (Kg) 25
Dimensions (mm) 260 x 430 x 470

Power Tig Welding Machine – TIG 300 GP ACDC

Product Details
Input Voltage (V) AC220 ±15%
Input Power (KVA) 8.8
Frequency (Hz) 50/60
Output Current (A) 10-300
Duty Cycle (%) 85
Weight (Kg) 50
Dimensions (mm) 315 x 750 x 570

Power Tig Welding Machine – TIG 500 GP ACDC

Product Details
Input Voltage (V) AC415 ±15%
Input Power (KVA) 20
Frequency (Hz) 50/60
Output Current (A) 10-500
Duty Cycle (%) 85
Weight (Kg) 60
Dimensions (mm) 315 x 750 x 570

Power Tig Welding Machine – P1600

Product Details
Input Voltage (V) AC220 ±15%
Input Power (KVA) –
Frequency (Hz) 50/60
Output Current (A) 2-500
Duty Cycle (%) 60
Weight (Kg) 15
Dimensions (mm) 400 x 220 x 290

TIG welding inverter TP 202 AC/DC

Product Details
Input Voltage (V) AC230 ±10%
Input Power (KVA) 8.3
Frequency (Hz) 50/60
Output Current (A) 10-200
Duty Cycle (%) 60
Weight (Kg) 20
Dimensions (mm) 460 x 240 x 450
Electrode 2.00 – 5.00 mm
Protection class IP 23S

Tig Af Tig Coldwire Wire Feeder

Features  GOLDWIRE WIRE FEEDER
1 TIG welding feeder that allows the addition of wire in the TIG welding bead intermittently or continuously.
2 Increased productivity and weld quality due to constant wire addition.
3 education of costs without waste of additional material
4 Usable in all welding applications TIG manual, automatic, and orbital thin or thick plate, piping, recharge

WIM Spot Welding – PMC 25

Product Details
Input Voltage (V) AC230/415 ±15%
Input Power (KVA) 25
Frequency (Hz) 50/60
Maximum Current (A) 12,000
Plate Thickness (mm) 5+5
Duty Cycle (%) 50
Weight (Kg) 166
Dimensions (mm) 375 x 658 x 1190

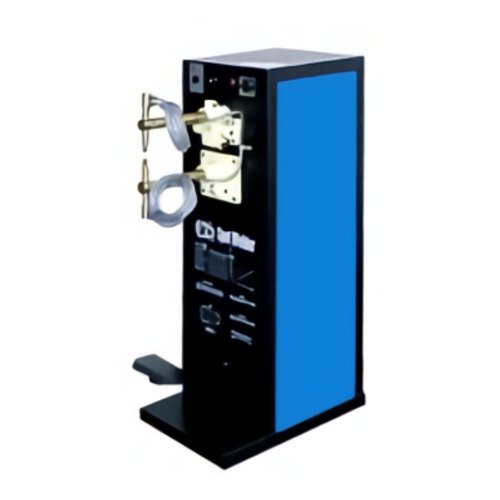

WIM Spot Welding – MC-15

Product Details
Input Voltage (V) AC230/415 ±15%
Input Power (KVA) 15
Frequency (Hz) 50/60
Maximum Current (A) 7500
Plate Thickness (mm) 3+3
Duty Cycle (%) 50
Weight (Kg) 118
Dimensions (mm) 335 x 640 x 1190

WIM Spot Welding – MC 25

Product Details
Input Voltage (V) AC230/415 ±15%
Input Power (KVA) 25
Frequency (Hz) 50/60
Maximum Current (A) 12,000
Plate Thickness (mm) 5+5
Duty Cycle (%) 50
Weight (Kg) 158
Dimensions (mm) 375 x 658 x 1190

WIM Spot Welding – JPC35

Product Details
Input Voltage (V) AC230/415 ±15%
Input Power (KVA) 35
Frequency (Hz) 50/60
Maximum Current (A) 14,000
Plate Thickness (mm) –
Duty Cycle (%) 50
Weight (Kg) 310
Dimensions (mm) 690 x 1170 x 1910

WIM Spot Welding – JPC50

Product Details
Input Voltage (V) AC230/415 ±15%
Input Power (KVA) 50
Frequency (Hz) 50/60
Maximum Current (A) 16,000
Plate Thickness (mm) –
Duty Cycle (%) 50
Weight (Kg) 330
Dimensions (mm) 690 x 1170 x 1910

WIM Spot Welding – JPC70

Product Details
Input Voltage (V) AC415 ±15%
Input Power (KVA) 30
Frequency (Hz) 50/60
Maximum Current (A) –
Plate Thickness (mm) –
Duty Cycle (%) 60
Weight (Kg) 162
Dimensions (mm) –

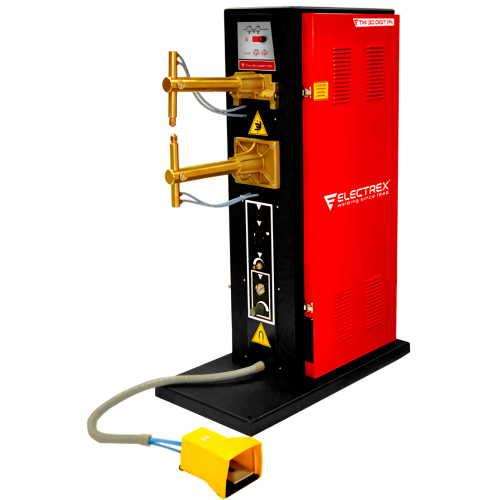

Spot Welder Thi 30 Digit Pn

Features  SPOT WELDER THI 30 DIGIT PN
1 30kVA spot welding machine pneumatically operated (PN).
2 400V or 230V (optional) single-phase power input with automatic detection of mains frequency
3 Arms and electrodes are adjustable positions and compatible with a wide range of electrodes, allowing different sizes and shapes of parts welding
4 Single or double current impulse (oxidized or galvanized sheets)

SPOT WELDER THI 50 DIGIT PN

Features  SPOT WELDER THI 50 DIGIT PN
1 50 KVA spot welding machine pneumatically operated (PN)
2 400V or 230V (optional) single-phase power input with automatic detection of mains frequency
3 Arms and electrodes are in adjustable positions and compatible with a wide range of electrodes, allowing different sizes and shapes of parts welding
4 Single or double current impulse (oxidized or galvanized sheets)

Spot WelderThi 30 Digimatic Pn

Features  SPOT WELDER THI 30 DIGIMATIC PN
1 50 KVA spot welding machine pneumatically operated (PN)
2 400V or 230V (optional) single-phase power input with automatic detection of mains frequency
3 Arms and electrodes are in adjustable positions and compatible with a wide range of electrodes, allowing different sizes and shapes of parts welding
4 Single or double current impulse (oxidized or galvanized sheets)
5 DIGIMATIC controller that allows automatic sequential welding.

Spot Welder Thi 50 Digit Pn

Features  SPOT WELDER THI 50 DIGIMATIC PN
1 50 KVA spot welding machine pneumatically operated (PN)
2 400V or 230V (optional) single-phase power input with automatic detection of mains frequency
3 Arms and electrodes are adjustable position and compatible with a wide range of electrodes, allowing different sizes and shape parts welding
4 Single or double current impulse (oxidized or galvanized sheets)
5 DIGIMATIC controller that allows automatic sequential welding.

Pro Spot Welding Spot Body Repair

Product Details
Input Voltage (V) AC110/220V ±15%
Input Power (KVA) 2.2
Frequency (Hz) 50/60
Output Current (A) 2600
Input Current (A)  –
Duty Cycle (%) 60
Weight (Kg) 18
Dimensions (mm) 200 x 320 x 180

Flame Welding & Cutting Machine – Electricity Only No Oxygen & Acetylene Needed – PFG-1000W

Product Details
External supply voltage (one-phase) (V) 100 – 250
External supply frequency (Hz) 50-60
Max power (under the condition of 250V) 1.0
Max power (under the condition of 100V) 0.6
Host weight (Kg) 14 .6
Torch weight (Kg) 0.9
Safe no-load voltage (V)  –
Working Voltage (V) 27-33
Duty Cycle (%) 100
Host outsize: L x H x W (mm) 470x270x220
Torch outsize: L x H x W (mm) 210x215x60
Machine power cord length (m) 1.62
Torch cord length (m) 3
Welding type Flame welding
Flame temperature (ºC) 4200~9500
Cutting capabilities (regular steel) (mm) up to 3/8(10)
Welding capabilities (regular steel) (mm) from 1/64 (0.4) up to 2 (15)



Multi Operator Welding – MRR-3000

Product Details
Input Voltage (V) AC220/380/400/415/440/500/550V ±15%
Input Power (KVA) 163
Frequency (Hz) 50/60
Output Current (A) 2400
Input Current (A)  –
Duty Cycle (%) 100
Weight (Kg) 715
Dimensions (mm) 870 x 1025 x 1430

Plasma Cutting Machine – CUT-60

Product Details
Input Voltage (V) AC220V ±15%
Input Power (KVA) 71
Frequency (Hz) 50/60
Output Current (A) 20-25
Input Current (A) 27.6
Duty Cycle (%) 60
Weight (Kg) 21
Dimensions (mm) 540 x 215 x 360

Plasma Cutting Machine – CUT-100

Product Details
Input Voltage (V) AC415V ±15%
Input Power (KVA) 18
Frequency (Hz) 50/60
Output Current (A) 10-100
Input Current (A) 27.6
Duty Cycle (%) 60
Weight (Kg) 25
Dimensions (mm) 530 x 270 x 430

Plasma Cutting Machine – CUT-120

Product Details
Input Voltage (V) AC415V ±15%
Input Power (KVA) 22
Frequency (Hz) 50/60
Output Current (A) 120
Input Current (A) 32
Duty Cycle (%) 60
Weight (Kg) 50
Dimensions (mm) 650 x 350 x 556

Plasma Cutting Machine – POWERCUT 50

Product Details
Input Voltage (V) AC230V ±15%
Input Power (KVA) 6.6
Frequency (Hz) 50/60
Output Current (A) 29
Input Current (A) 40
Duty Cycle (%) 60
Weight (Kg) 14.5
Dimensions (mm) 360 x 490 x 175

Plasma Cutting Machine – POWERCUT 100

Product Details
Input Voltage (V) AC400V ±15%
Input Power (KVA) 19.5
Frequency (Hz) 50/60
Output Current (A) 19-28
Input Current (A) 70-100
Duty Cycle (%) 60
Weight (Kg) 21
Dimensions (mm) 360 x 570 x 195

Gas Cutting Equipments – CG2-30

Product Details
Input Voltage (V) AC220V ±15%
Cutting Thickness (mm) 6-100
Cutting Speed (mm/min) 50-750
Circle Diameter (mm) 200-2000
Dimensions (mm) 470 x 230 x 240
Weight (Kg) 16

Gas Cutting Machine – HK-12

Product Details
Input Voltage (V) AC220V ±15%
Cutting Thickness (mm) 6-100
Cutting Speed (mm/min) 150-800
Circle Diameter (mm) 290-540
Dimensions (mm) 350 x 140 x 175
Weight (Kg) 1

Gas Cutting Equipments – CG2-150 – (Template Cutter)

Product Details
Input Voltage (V) AC220V ±15%
Cutting Thickness (mm) 6-100
Cutting Speed (mm/min) 50-750
Circle Diameter (mm) 600
Rectangle Size (mm) 400 x 900 x 450 x 750
Dimensions (mm) 1190 x 335 x 800
Weight (Kg) 56.5

Gas Cutting Machine – Cg2-2700 – (Template Cutter)

Product Details
Input Voltage (V) AC220V ±15%
Cutting Thickness (mm) 6-100
Cutting Speed (mm/min) 50-750
Circle Diameter (mm) 20-270
Rectangle Size (mm) 2500 x 650
Dimensions (mm) 1390 x 480 x 800
Weight (Kg) 114

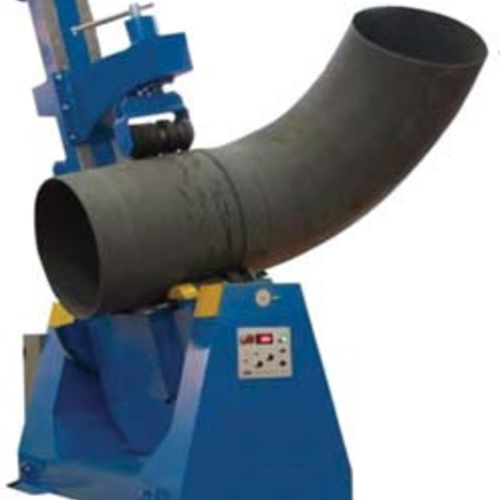

Pipe Tilt Rotator – GK1000PR

Product Details :

• Welding, cutting, and grinding through clamping rotation and tilting the
pipes. For automated operation with a two-dimensional adjustable torch
clamping system to increase productivity.
• Able to hold pipes with elbows, tee pieces, or other offset loads.
• 3 sets of clamping rollers are renewable and able to supply special clamps or
clamp rollers for workpieces with small clamping space.
• Wide range of pipes can be clamped, rotary speed will not be affected by
the diameter of the pipes.
• Very convenient, quick precise centering and clamping, and works without
a chuck.
• Floating clamp device is able to clamp and rotate workpiece with
unfavorable sphericity
• Rigid structure, good integrity and can be conveniently transited, driving unit
can be protected inside the bracket of the machine (eg. rotate/tilt unit).
• ±40°tilt function allows the pipe–flange to implement fillet welding in a flat
position.
• We can also reserve an interface to connect the foot switch welding mask to
control the workpiece, with the help of the pendant

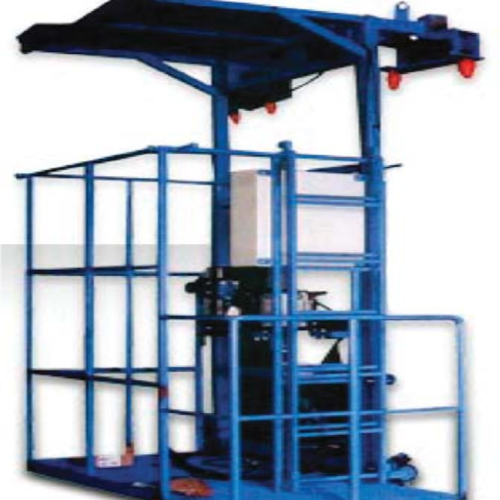

automatic tank welder

Specification :

• Master frame (A)
• Cross seam head adjuster
• 2 pieces of Flux Belt Other features of the Automatic Tank Welder include:
• Frame head spreader designed for easy tank top loading and clamp facilities
• Slave frame (B)
• Pre-heat torch & bracket
• Heavy motorized carriage supporting both welding stations
• Safety cages, ladders, and handrails with floors and roofs of non-slip plate
• Operator platform
• Weatherproof curtain
• Telescopic legs for welding adjustments from 300-1200mm
• Flux recovery re-circulating systems
• Weatherproof curtain – 50 meter
• Welding head for vertical welding adjustments of up to 300mm

Pipe Rack System

Product Description :

Our Pipe Rack System is a special custom design and build automatic modular welding and
transfer line process that incorporates a welding station with a fit-up, making it suitable for
circumferential sub-welding tubular sections. It also consists of a hydraulic kicker to allow lifting and
unloading. The Pipe Rack System assists customers in increasing production efficiency and
reduces production costs in the long term.

Bandsaw Machine – Ue-100S

Model UE-100S
Type Magnetic Switch
Motor (HP) 1/2
Voltage (V) 230
Blade Speed (MPM) 45
Blade Size 13 x 0.65 x 1470
Capacity (90º)/(45º) 100 x 150 / 85 x 150
Packing Measurement 725 x 380 x 460
Net Weight / Gross Weight (Kg) 23 / 27

Band Saw Machine – UE-712

Model UE-100S
Type Magnetic Switch
Motor (HP) 1
Voltage (V) 230/415
Blade Speed (MPM) Step Pulley 22/23/45/65
Blade Size 13 x 0.65 x 1470
Capacity (90º)/(45º) 180 x 280 / 65 x 300
Packing Measurement 1270 x 460 x 1030 130
Net Weight / Gross Weight (Kg) 150

Bandsaw Machine- UE-916

Model UE-916
Type Manual, 4 Speed
Motor (HP) 1.1 / 2
Voltage (V) 230/415
Blade Speed (MPM) 25/40/51/671
Blade Size 27 x 0.90 x 3035
Capacity (90º)/(45º) 225 x 345 / 225 x 165
Packing Measurement 1710 x 750 x 1090
Net Weight / Gross Weight (Kg) 285 / 320

Circular Saw Machine – YJ-275

Features :

Product Details
Sawing & Cutting Ability (mm) 80
75 x 75
75 x 75
85 x 65
38
38 x 38
Max. A gap in the Clamp (mm) 85
Host Motor (kW) 4/2 (Pole Changing) 1.3 / 1.8
Input Voltage 250, 275, 300

Circular Saw Machine – YJ-455

Product Details
Sawing & Cutting Ability (mm) 130
130 x 130
180 x 100
200 x 100
60
60 x 60
Max. A gap in the Clamp (mm) 85
Host Motor (kW) 4/2 (Pole Changing) 1.3 / 1.8
Input Voltage 350, 400, 455

Circular Saw Machine – YJ-350

Product Details
Sawing & Cutting Ability (mm) 115
110 x 110
110 x 110
150 x 90
60
60 x 60
Max. Gap of the Clamp (mm) 85
Host Motor (Kw) 4/2 (Pole Changing) 2.4 / 3.0
Input Voltage 300, 325, 350

Stainless Steel Weld Bead Cleaning

Features  STAINLESS STEEL WELD BEAD CLEANING
1 An efficient process dramatically reduces finishing time and labor costs
2 An electrochemical reaction does not alter the surface finish
3 Compatible with brush and etching options.
4 Ergonomic and insulated wand design prevents user fatigue
5 Portable for both shop and field use
6 Various electrode designs easily match your specific application

Water Cooler Radiator

Features  WATER COOLER RADIATOR
1 Easy Operation, Excellent Design For Ventilation, and Compact & Light
2 Ideal For MIG, TIG, PLASMA, SPOT Etc. Welding Equipment
3 High safety protected and user-friendly, High Heat Exchanger
4 Auto cooling system with radiator
5 Able to resist electronic interference and not affect electric appliance equipment.

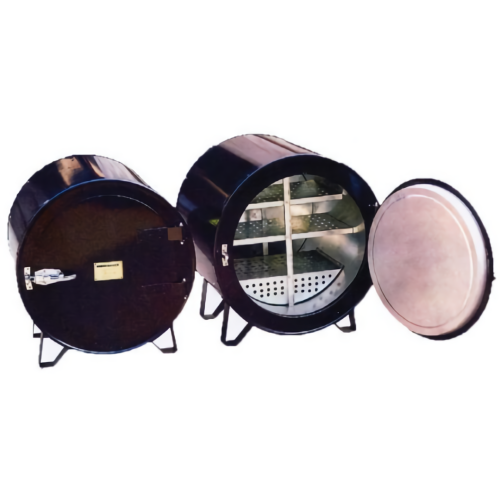

Floor Type Electrode Oven – A-50MS

Product Details
Electrode Capacity (Kg) 50
Temperature Range (ºC) 50 – 400
Input Voltage (V) AC220
External Dimension (mm) 660 x 420 x 410
Internal Dimension (mm) 550 x 290 × 270
Body Insulation (Rock Wool) 50mm / 2″
Weight (Kg) 36

Floor Type Electrode Oven – A-200MS

Product Details
Electrode Capacity (Kg) 200
Temperature Range (ºC) 50 – 400
Input Voltage (V) AC220/415
External Dimension (mm) 790 × 718 × 1260
Internal Dimension (mm) 680 x 578 x 1010
Body Insulation (Rock Wool) 50mm / 2″
Weight (Kg) 175

Floor Type Electrode Oven – A-450MS

Product Details
Electrode Capacity (Kg) 450
Temperature Range (ºC) 50 – 400
Input Voltage (V) AC220/415
External Dimension (mm) 1445 × 775 × 1460
Internal Dimension (mm) 1335 x 635 x 1210
Body Insulation (Rock Wool) 50mm / 2″
Weight (Kg) 300

Portable Electrode Oven – A-5W

Product Details
Electrode Capacity (Kg) 5
Input Voltage (V) 220
Power (W) 500
Max. Temperature (ºC) 50 – 300
Electrode Length (mm) 450
Chamber Size (mm) ø86 x H485
Overall Size (mm) 145 x 200 x 590
Weight (Kg) 3.8

Porttable Electrode Oven – A-10W

Product Details
Electrode Capacity (Kg) 5
Input Voltage (V) 220
Power (W) 780
Max. Temperature (ºC) 50 – 300
Electrode Length (mm) 450
Chamber Size (mm) ø86 x H485
Overall Size (mm) 210 x 167 x 590
Weight (Kg) 4.3

Bench Type Electrode Oven – Ar-150

Product Details
Electrode Capacity (Kg) 150
Temperature Range (ºC) 50 – 300
Input Voltage (V) AC220
External Dimension (mm) 660 x 580
Internal Dimension (mm) 450460 x 520
Body Insulation (Rock Wool) 50mm
Weight (Kg) 35

Bench Type Electrode Oven – Ar-200

Specification :

Product Details
Electrode Capacity (Kg) 200
Temperature Range (ºC) 50 – 400
Input Voltage (V) AC220
External Dimension (mm) 510 x 520
Internal Dimension (mm) 450460 x 520
Body Insulation (Rock Wool) 50mm
Weight (Kg) 45

Vertical Flux Oven – AF-100L

Product Details
Electrode Capacity (Kg) 100 / 80
Temperature Range (ºC) 50 – 400
Input Voltage (V) 220
External Dimension (mm) 740 x 650 x 1050
Weight (Kg) 75

Welding Curtain & Frame

Features  WELDING CURTAIN & FRAME
1 Increase productivity by creating a quiet, safer, and cleaner workplace.
2 elding screens meet OSHA standards and CPAI-84 California Fire Marshal requirements
3 The welding screen has CE Certified and has been tested for UV Resistance and Transmission, as well as Flame Retardant levels.

Pipe Line Up Clamp

Product Details :

• High matching accuracy: unfitness of butt joint is below 1.5mm
• Simple operation: single diameter design produce,no need to adjust.
• Area adjust system: area adjust unfitness of butt joint,light,reasonable,reliable.
• Light weight:easy to carry.
• Manual lever type external pipe line-up champ–it is mainly used on pipelines with a diameter below 406mm.The main features are easy handling and high matching efficiency.
• Manual rectangle screw-rod-type external pipe line-up clamp–it is mainly used for 16”-48” pipes during pipeline construction

CO2/Argon Gas Regulators

Product Details
Applied Gas Carbon Dioxide (CO2)
Out Flow (L/min) 0 – 25
Out Flow Pressure (Mpa) 0.35
Rated Input (V) 110 / 220 / 36

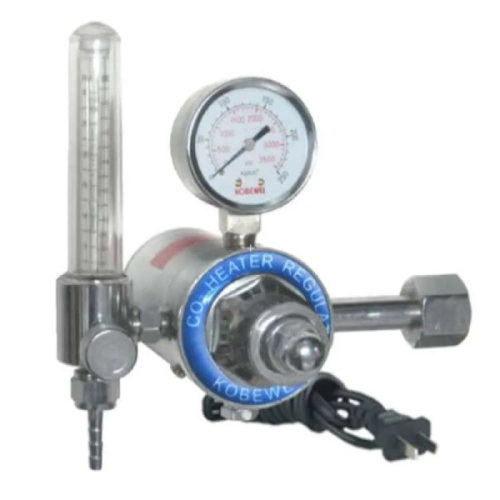

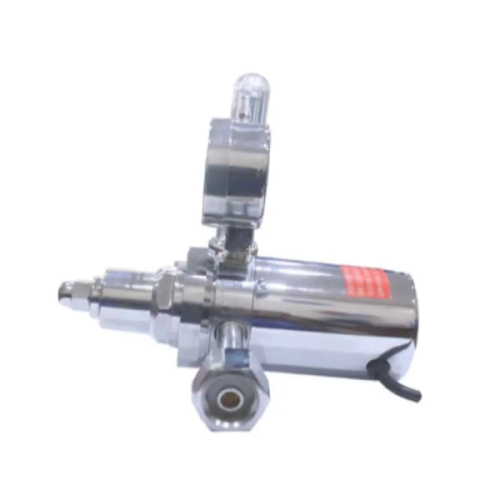

CO2 Heater Gas Regulators

Product Details
Applied Gas Carbon Dioxide (CO2)
Out Flow (L/min) 0 – 25
Out Flow Pressure (Mpa) 0.35
Rated Input (V)  –

Argon Gas Regulator

Product Details
Applied Gas Argon (AR)
Out Flow (L/min) 0 – 25
Out Flow Pressure (Mpa) 0.35
Rated Input (V)  –

MG-11 CamType Weld Gauge

Description :

• Knurled nut holds set together
• All edges deburred
• All Letters and characters chemically etched handy pocket case
• Fillet weld gage allows fast, accurate measurement of 11 fillet weld sizes: 1/8, 3/16, ¼, 5/16, 3/8,
7/16, ½,5/8, ¾, 7/8, and 1 inch.
• Includes metric equivalents.
• Determine either concave or convex weld sizes.

MG-8 Cam TypeWeld Gauge

Description :
• Knurled nut holds set together
• All edges deburred
• All Letters and characters chemically etched handy pocket case
• Fillet weld gage allows fast, accurate measurement of 11 fillet weld sizes: 1/8, 3/16, ¼, 5/16, 3/8,
7/16, ½,5/8, ¾, 7/8, and 1 inch.
• Includes metric equivalents.
• Determine either concave or convex weld sizes.

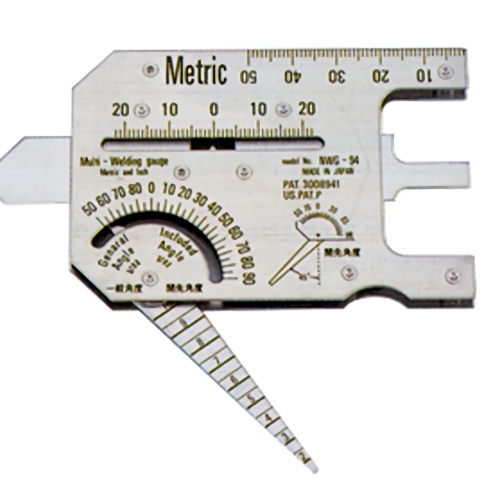

Metric Nwg-94 Weld Gauge

Description :

• Knurled nut holds set together
• All edges deburred
• All Letters and characters chemically etched handy pocket case
• Fillet weld gage allows fast, accurate measurement of 11 fillet weld sizes: 1/8, 3/16, ¼, 5/16, 3/8,
7/16, ½,5/8, ¾, 7/8, and 1 inch.
• Includes metric equivalents.
• Determine either concave or convex weld sizes.

Head Shield Welding

Product Details
Usage/Application Welding
Size  Medium
Visor Thickness  2.5mm
Glass Size  8 x 5 cm
Temperature 80 – 120 Degrees (temperature tolerance)
Vision Width 140 Degree

Solar Welding Glasses

Features  SOLAR WELDING GLASSES
1 Automatic light protection glasses, using automatic light film, are lightweight and convenient.
2 Solar lithium battery, no need to replace the battery, automatic standby, without loss of power

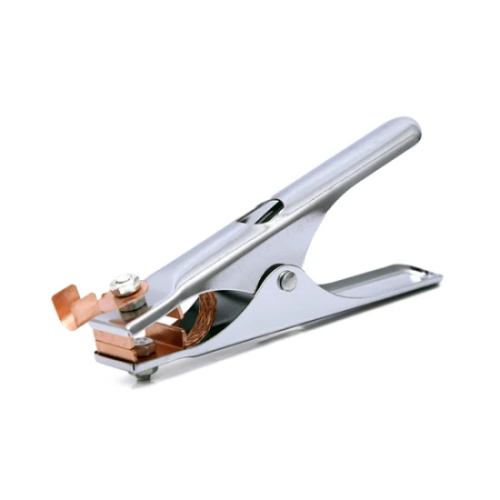

Earth Clamp (300A / 500A)

Features  SOLAR WELDING GLASSES
1 Strong construction with a heavy-duty spring that provides a firm grip on the job material
2 prevent slippage and assures continuity of earth connection
3 Available on screw type and from 300A to 600A

Gouging Torches & Gouging Rods

No Model 4.8 x 305 6.4 x 305 8.0 x 305 10 x 305 13 x 305 5 x 10 x 305 (Flat) 5 x 15 x 305 (Flat)
1 Amps (A) 200-300 250-400 350-500 450-600 550-800 400-600 550-800

Mig Torches & Parts – (MAXI 150)

Specifications :

• Heavy duty, economically and technically matured, and 100%
reliable.
• Optimum torch cooling – high endurance.
• Air cooled from 160 to 500 A
• Easy maintenance & replacement of parts

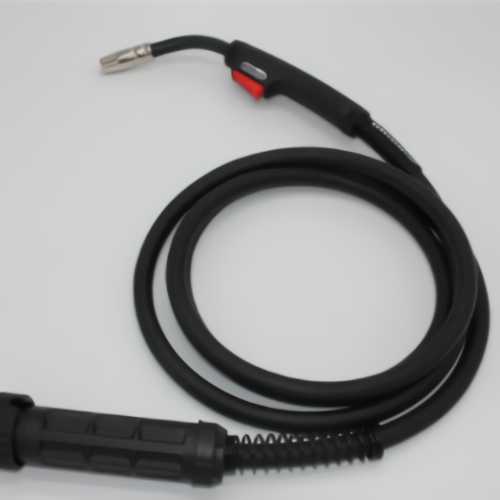

Mig Torches & Parts (MAXI 250)

Specifications :

• Heavy duty, economically and technically matured, and 100%
reliable.
• Optimum torch cooling – high endurance.
• Air cooled from 160 to 500 A
• Easy maintenance & replacement of parts

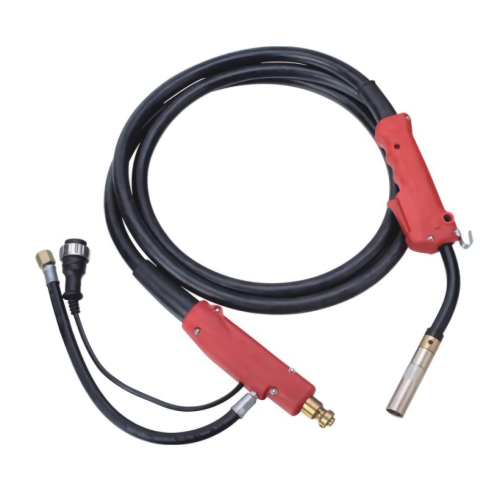

Mig Torches & Parts (MAXI 350)

Specifications :

Heavy duty, economically and technically matured, and 100%
reliable.
• Optimum torch cooling – high endurance.
• Air cooled from 160 to 500 A
• Easy maintenance & replacement of parts

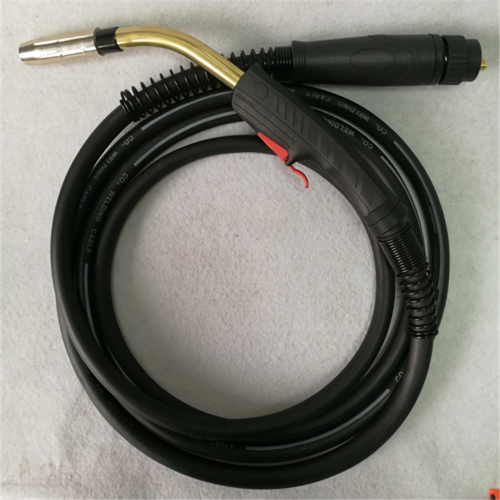

Mig Torches & PartsS (MAXI 450)

Specifications :

• Heavy duty, economically and technically matured, and 100%
reliable.
• Optimum torch cooling – high endurance.
• Air cooled from 160 to 500 A
• Easy maintenance & replacement of parts

Mig Torches & Parts (Binzel MB15)

Specifications :

• Economic and technically matured and 100% reliable
• Water cooled from 240 to 500 A
• Easy maintenance & replacement of parts
• Air cooled from 150 to 400 A
• Optimum torch cooling – high endurance

Mig Torches & Parts (Binzel MB24)

Specifications :

• Economic and technically matured and 100% reliable
• Water cooled from 240 to 500 A
• Easy maintenance & replacement of parts
• Air cooled from 150 to 400 A
• Optimum torch cooling – high endurance

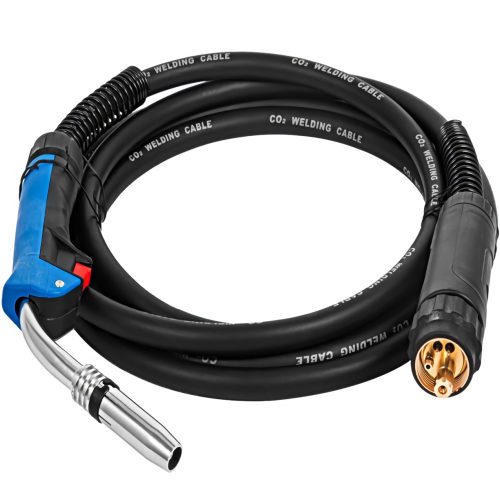

Mig Torches & PartsBinzel MB25)

Specifications :

• Economic and technically matured and 100% reliable
• Water cooled from 240 to 500 A
• Easy maintenance & replacement of parts
• Air cooled from 150 to 400 A
• Optimum torch cooling – high endurance

Mig Torches & Parts (Binzel MB36)

Specifications :

• Economic and technically matured and 100% reliable.
• Water cooled from 240 to 500 A.
• Easy maintenance & replacement of parts.
• Air cooled from 150 to 400 A.
• Optimum torch cooling – high endurance.

Mig Torches & Parts (Binzel MB500)

Specifications :

• Economic and technically matured and 100% reliable
• Water cooled from 240 to 500 A
• Easy maintenance & replacement of parts
• Air cooled from 150 to 400 A
• Optimum torch cooling – high endurance

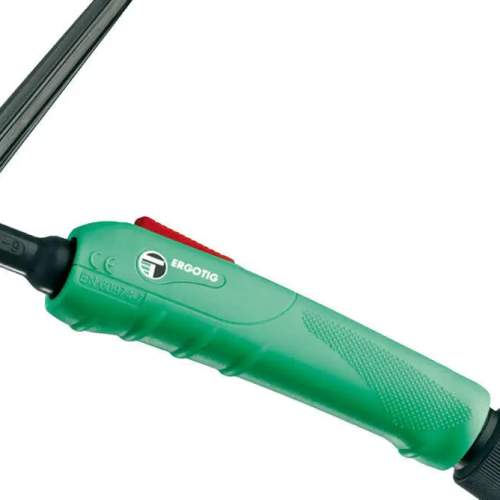

TIG Ttorvrdd & Parts (WP9)

Specification :

• The series of Tig torches consist of 100-400 Amperes of air and water-cooled
torches.
• The series distinguishes itself for the ergonomic grip and the presence of the
joint between the cable bundle and grip.
• These are important features for Tig welding since torches with remarkable
manageability are required.
• The series is available with and without the valve, automatic, and “free” without
push-button.
• Further special configurations are available upon request.

Tig Torches & Parts – (WP17)

Specification:

• The series of Tig torches consist of 100-400 Amperes of air and water-cooled
torches.
• The series distinguishes itself for the ergonomic grip and the presence of the joint
between the cable bundle and grip.
• These are important features for Tig welding since torches with remarkable
manageability are required.
• The series is available with and without the valve, automatic and “free” without
push-button.
• Further special configurations are available upon request.

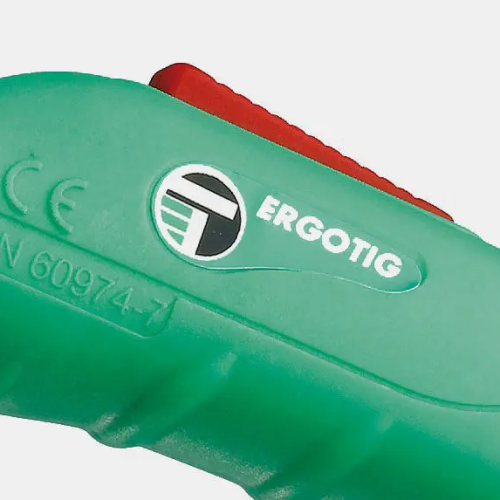

Tig Torches & Parts- (WP26)

Description :

• The series of Tig torches consist of 100-400 Amperes of air and water-cooled
torches.
• The series distinguishes itself for the ergonomic grip and the presence of the joint
between the cable bundle and grip.
• These are important features for Tig welding since torches with remarkable
manageability are required.
• The series is available with and without the valve, automatic, and “free” without
push-button.
• Further special configurations are available upon request.

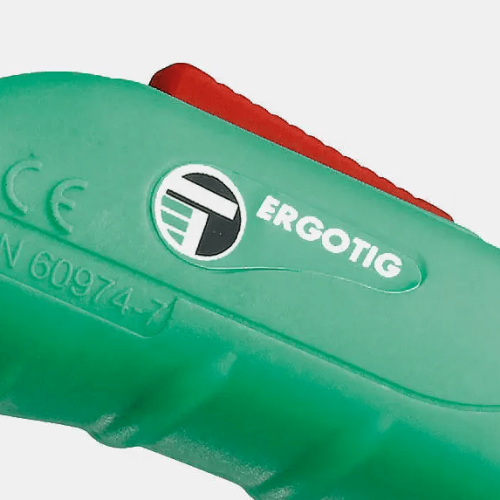

Tig Torches & Parts (WP20)

Specification :

• The series of Tig torches consist of 100-400 Amperes of air and water-cooled
torches.
• The series distinguishes itself for the ergonomic grip and the presence of the joint
between the cable bundle and grip.
• These are important features for Tig welding since torches with remarkable
manageability are required.
• The series is available with and without the valve, automatic, and “free” without
push-button.
• Further special configurations are available upon request.

Tig Torches & Parts- (Wp18)

Description :

• The series of Tig torches consist of 100-400 Amperes of air and water-cooled
torches.
• The series distinguish itself for the ergonomic grip and the presence of the joint
between the cable bundle and grip.
• These are important features for Tig welding since torches with remarkable
manageability are required.
• The series is available with and without the valve, automatic, and “free” without
push-button.
• Further special configurations are available upon request.

Plasma Welding Torch

Product Details
Current Range (A) 5 – 150
Duty Cycle (%) 60
Nozzle Cooling Indirect
Electrode Cooling Indirect
Nozzle Aperture Range (mm) 0.8 – 2.5
Electrode Diameter. (mm) 2.4
Hand type Yes
Machine type Yes

Plasma Torches & Parts – (CB70)

Product Details
code PAE106M-001-BA3
Standart EN60974-7
Width 6 m
TORCH ERGOCUT CB 70
Connection Central adaptor
type Air-cooled
Flow Rate 170 l/min
Pressure 5 bar
Thickness 18-24 mm

Mobile Fume Collectors

Fume extraction systems are designed to keep your employees safe and comfortable.
Fume extractors are designed specifically for welding, drawing weld fumes away from the
user’s breathing zone, and keeping your facility clean.

Benefit :

• Safe operation by rotation field control
• Maintenance door allows easy filter change
• Exhaust arm requires less adjustment due to the exhaust hood design
• Increased safety due to filter monitoring
• Space-saving solution due to two extraction arms
• Possibility of working in two alternating places due to dampers in the extraction hood

Induction Heating

No Model DW10/380 DW15/380 DW20/380 DW30/380 DW40/380 DW60/380 DW80/380 W100/380
1 Output Power (kW) 10 12 20 30 40 60 80 100
2 Frequency (Khz) “1-50 “1-50 “1-50 “1-50 “1-30 “1-20 “1-20 1-20
3 Input Voltage (V) 380 380 380 380 380 380 380 380
4 Input Current (A) 17 26 34 51 68 102 143 169

Magnetic Core Drill – DW-35

Product Details
Stroke (mm) 118
Magnetic Base Size (mm) 80 x 168
Input Power (mm) 1100
Max Cutting Depth (mm) 50
Max Cutter Capacity (mm) 35
Max. Motor Adjustable Height (mm) 210
Max. Diameter of Twist Drill (mm) 13
Countersunk Drilling (mm) 10-35
Min. Cutter Depth (mm) 5
Magnetic Adhesion (N) 10,000
Type of shank (mm) 19
Weight (Kg) 10.5
Load Speed (Rpm) 450

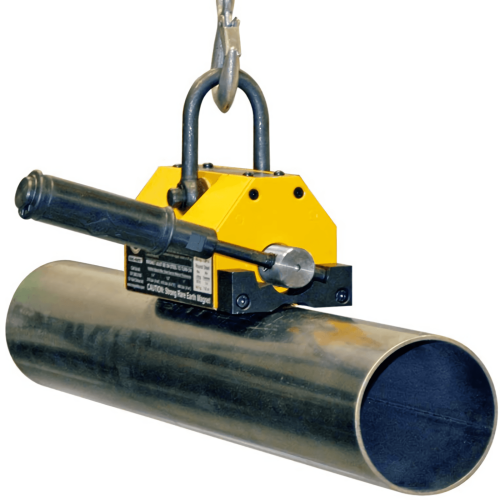

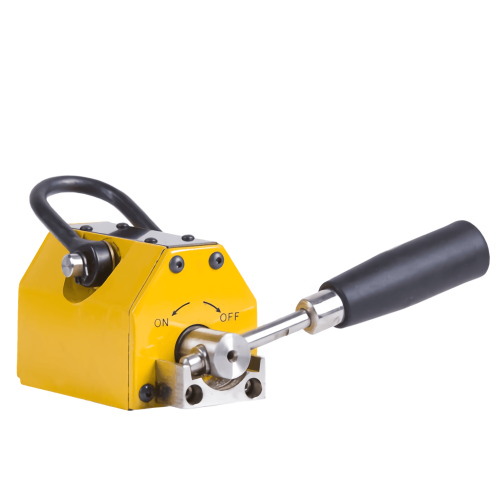

Pr Series LIifting Magnet

No Model Rated Lifting (Flat) (KG) Rated Lifting (Round) (KG)
1 PR-100 100 50
2 PR-300 “300 150
3 PR-600 600 300
4 PR-1000 1000 500
5 PR-2000 2000 1000
6 PR-3000 3000 1500
7 PR-4000 6000 3000

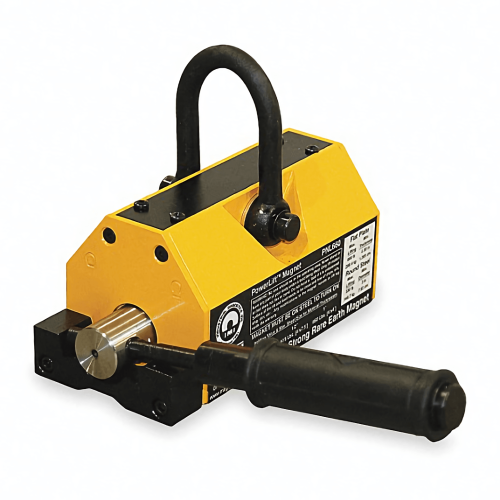

P Series Lifting Magnet

No Model Rated Lifting (Flat) (KG) Rated Lifting (Round) (KG)
1 P-100 100 70
2 P-300 “300 210
3 P-600 600 420
4 P-1000 1000 700
5 P-2000 2000 1400
6 P-3000 3000 2100

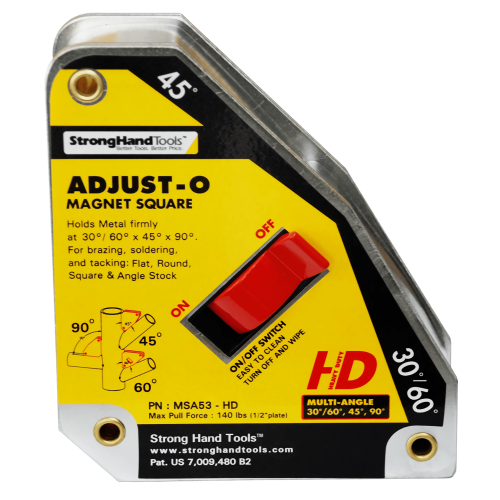

Magnet Squares – MSA53-HD

Description :

– The fast & easy way to holf metal workpieces at 45º & 90º.
– Turn the magnet OFF when setting up, and ON when you’re ready to work.
– Ideal for round and square tubing, angle, and flat stock.
– Easy to clean, simply turn off and wipe.

Magnet Squares – MSA48-HD

Description :

– The fast & easy way to holf metal workpieces at 45º & 90º.
– Turn the magnet OFF when setting up, and ON when you’re ready to work.
– Ideal for round and square tubing, angle, and flat stock.
– Easy to clean, simply turn off and wipe.

Magnet Squares – MSA45

Description :

– The fast & easy way to holf metal workpieces at 45º & 90º.
– Turn the magnet OFF when setting up, and ON when you’re ready to work.
– Ideal for round and square tubing, angle, and flat stock.
– Easy to clean, simply turn off and wipe.

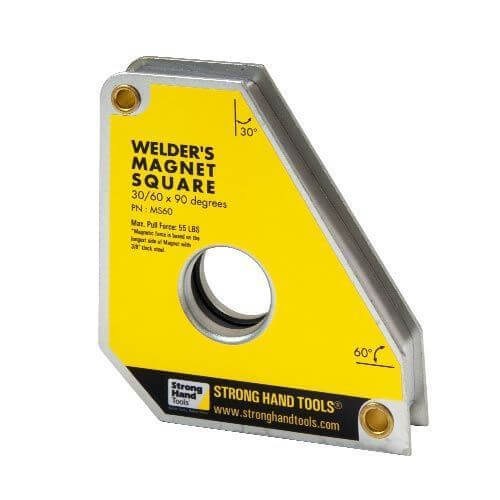

Magnet Squares – MS60

Description :

-The fast & easy way to holf metal workpieces at 45º & 90º.
– Turn the magnet OFF when setting up, and ON when you’re ready to work.
– Ideal for round and square tubing, angle, and flat stock.
– Easy to clean, simply turn off and wipe

Magnet Squares – MS2-90

Description :

For professional jobs that demand strong hold-down forces, hold flat & round metal workpieces.
– Two On/Off switches for independent operation
– Turn the magnet OFF when setting up, and ON when you’re ready to work.
– Precision machined flat & V-surfaces are ideal for round and square tubing, angle & flat stock
– Choose from 120 – 265 LBS (55 – 120 Kg) pull force.

Multi Angle Magnet – MAV120

Descriptions :

– Adjustable from 30º – 275º with 2 On/Off switches.
– Precision machined flat surfaces & nickel/chrome body.
– V-Groove surfaces securely hold round & square tubing, angle & flat stock

Gas Shielding Welding Wire

WELDING WIRE CHEMICAL COMPOSITION (%)
Weight (KG/Coil) Size (MM) C MN SI P S U
5 & 15 0.8 – 1.2 0.06 – 0.15 1.40 – 1.85 0.08 – 0.15 ≤ 0.03 ≤ 0.04 ≤ 0.50



MECHANICAL PROPERTIES OF DECOMPOSITION METAL
YIELD STRENGTH (MPA) TENSILE STRENGTH (MPA) ELONGATION (%) AKV IMPACT (ºC) SHIELDED GAS
≥ 420 ≥ 500 ≥ 22 ≥ 27 (-29) AR + CO2

Alumunium Wire – 5356

Product Details :

Aluminum MIG welding Magnesium (5xxx) when added to aluminum, magnesium has excellent weldability with a minimum loss of strength and is basically not prone to hot cracking. In fact, the 5XXX
series has the higher strength of non-heat-treatable aluminum alloys. It is used for chemical
storage tanks and pressure vessels at elevated temperatures as well as structural applications, railway
cars, dump trucks, and bridges because of its corrosion resistance.

Alumunium Wire – Elbor 5356

Product Details :

WELDING WIRE CHEMICAL COMPOSITION (%)
WEIGHT (KG/COIL) SIZE (MM) SI FE CU MN MG CR ZN TI BE
2/5/15″ 0.8 – 1.6 0.1 0.2 0.02 0.1 5 0.1 0.05 0.1 ≤ 0.0003

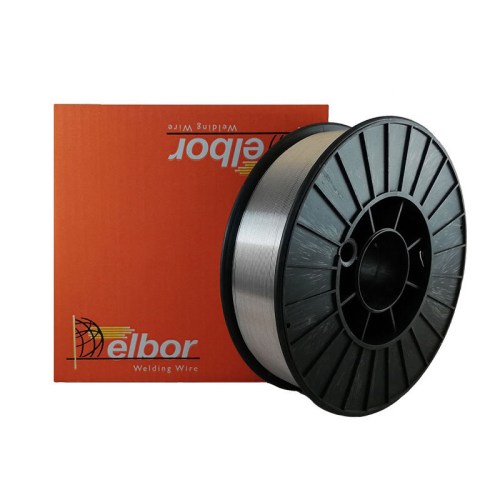

Alumunium Wire – Elbor 5183

Product Details :

WELDING WIRE CHEMICAL COMPOSITION (%)
WEIGHT (KG/COIL) SIZE (MM) SI FE CU MN MG CR ZN TI BE
2/5/15″ 0.8 – 1.6 0.03 0.13 0.001 0.65 4.99 0.01 0 0.07 ≤ 0.0003
