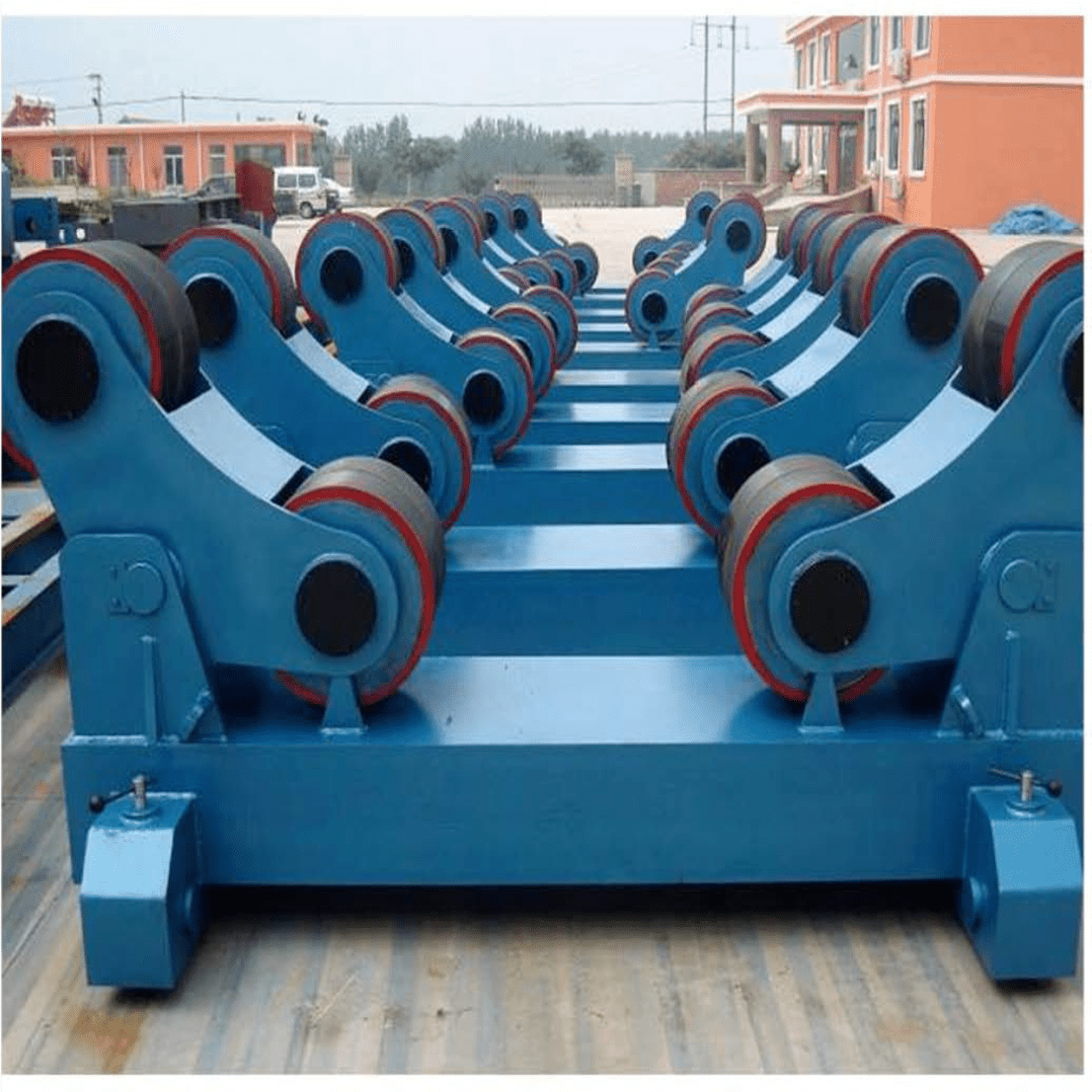

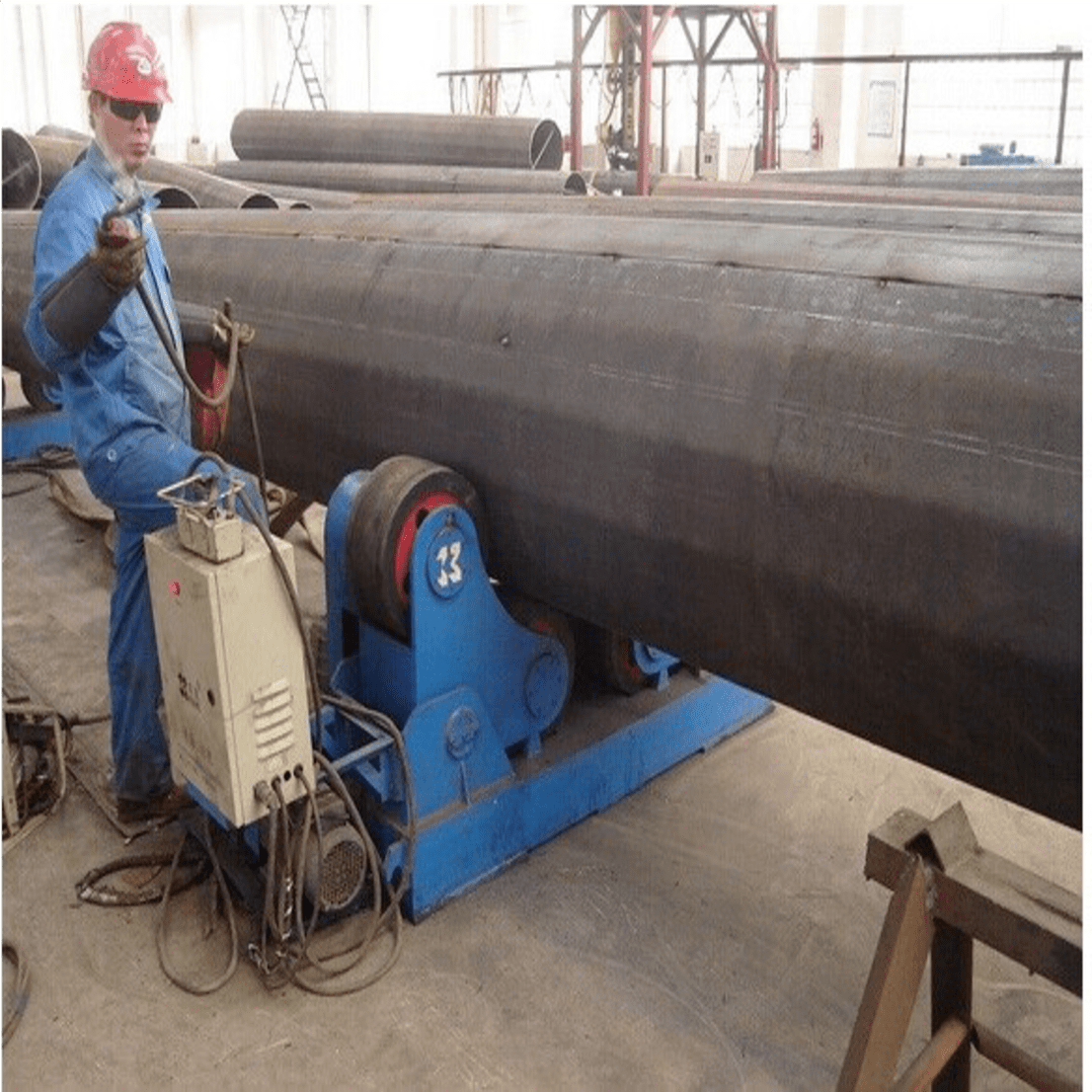

Self Aligned Welding Rotator

Category:

Description

No Model HGZ5 HGZ10 HGZ20 HGZ40 CHGK60 HGZ80 HGZ5100 HGZ150 HGZ200
1 Max.Loading (KG) 5 10 20 40 60 80 100 150 200
2 Working Range (Min-Max)(MM) 250 – 2300 320 – 2800 450 – 3500 600 – 4200 750 -4800 850 – 8000 1000 – 5500 1200 – 6500 1500 – 8000
3 Rubber Roller Size (D X W) (MM) 250 – 100 300 -120 350 – 120 400 -120 450 – 120 500 -120 500 -120 550 – 120 550 – 120
4 Metallic Roller Size (D X W) (MM) 244 – 20 294 -25 344 -30 394 – 40 444 – 50 494 -60 494 – 70 540 – 90 540 -100
5 Linear Speed (M/H) 60
6 Speed Control Stepless Electro-Magnetic Speed Control
7 Motor Power (KW) 0.75 1.1 1.5 3 4 4 5.5 5.5 7.5
8 Revolve Speed (RPM) 0.3 – 3 0.15 – 5 0.12 -1.2 0.1 – 1 0.08 – 0.8 0.07 – 0.7 0.05 – 0.5 0.05 – 0.5 0.02 – 0.4
