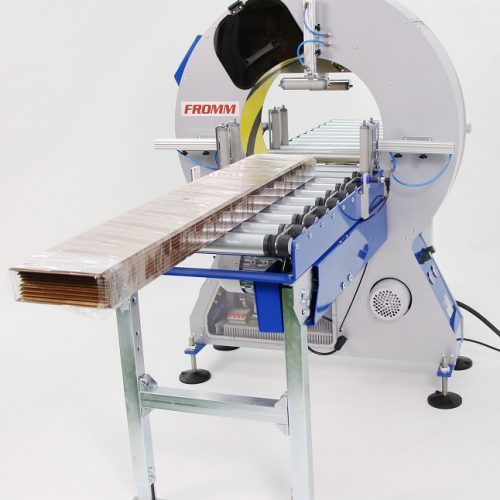

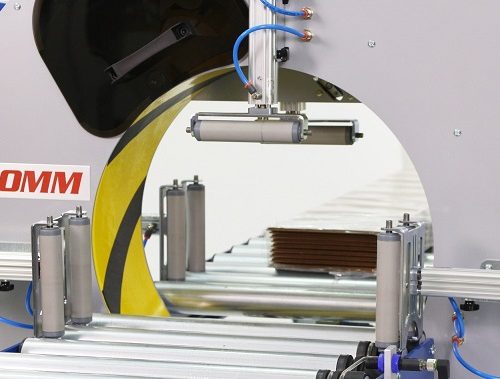

FV350 Automatic orbital film wrapping machine

Advantages

  • CE certified
  • Proven quality with competitive price
  • Easy operation, simple maintenance
  • In various inner ring diameters available
  • Double film reel dispenser
  • Ring protection
  • Adjustable stretch film tension
  • Automatic film cutter and clamp
  • Adjustable ring speed
  • Touch screen panel
  • Various optional features, i.e. Top press and dispensers

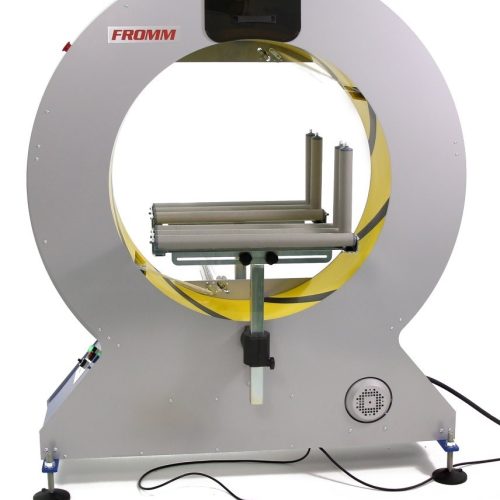

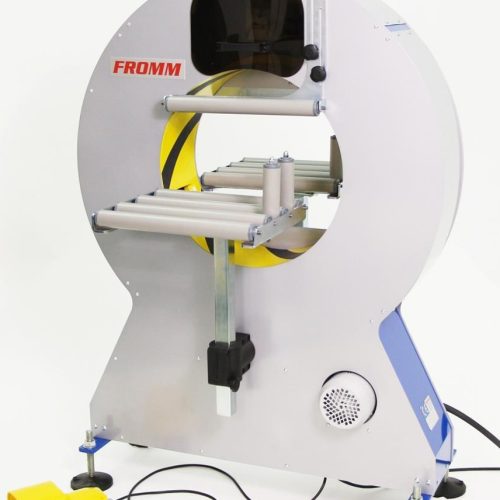

FV300 Semi-automatic orbital wrapping machine

Advantages

  • CE certified
  • Proven quality with competitive price
  • Easy operation, simple maintenance
  • In various inner ring diameters available
  • Double film reel dispenser
  • Safety foot switch
  • Ring protection
  • Adjustable stretch film tension
  • Adjustable ring speed
  • Various optional features, i.e.  Automatic film cutter and  Top press

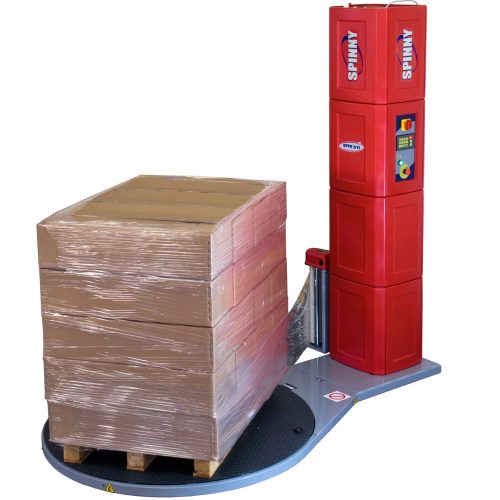

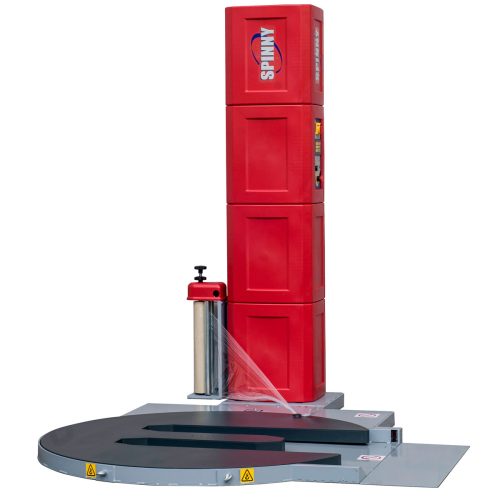

SPINNY S140 SERIES

Advantages

  • Cost saving – easy to use – secure loads
  • Versatile, unique and easy to use
  • Very easy installation and practically maintenance free
  • Very low turntable height and limited overall dimensions
  • Separate setting of top and bottom wraps
  • Indexed turntable stops in rest position
  • Inverter for soft start and stop of the turntable with rotation speed adjustable from 5 to 12 RPM
  • Photocell for automatic height detection of loads
  • Electronic control panel with 4 programmable wrapping cycles. Single, double, double with cover, and manual
  • Spinny S140 PLUS – Mechanical brake to adjust the film tension
  • Spinny S140 ADVANCED – Electromagnetic brake to adjust the film tension

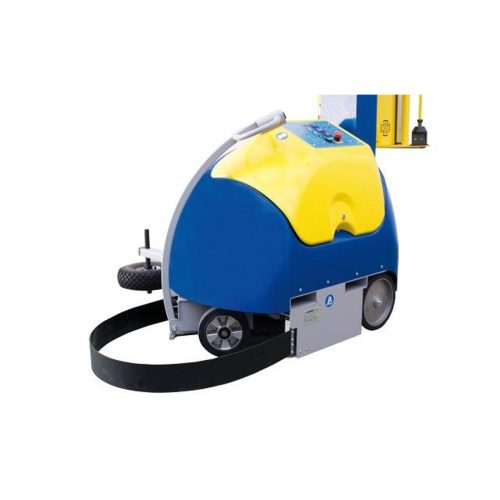

WRAPPING ROBOT FR330 / FR350

Characteristics

  • Dimension:

    1850 mm x 1280 mm

  • Power:

    2 batteries 12V – 110 Ah to maintenance-free gel
    230V simple phase / 1 kW – IP54

  • Accepted film type:

    « cast » or « blown » until 35 µ
    Coil (standard machine), dus diameter 250 mm,
    with Chuck ø 76 mm

  • Autonomy:

    150 / 180 pallets with charged batteries

  • Size min. palette:

    600 mm x 600 mm

  • Maximum pallet height:

    2100 mm

  • Space required:

    1150 mm around the pallet

  • Terms of use:

    5 ~ 45 °C

  • Security:

    Emergency stop very accessible
    Bumper soft obstacles
    Possibility of placing a flashing light that lights up during the cycle
    Audio signal before the start of the cycle

  • Other:

    Photocell for automatic detection of the height of pallet
    Spool controlled integrated chain to the mast (maintenance free)
    Starting and stopping progressive automatic return of the spool in starting
    position after each cycle
    Speed control by inverter adjustment of film recovery

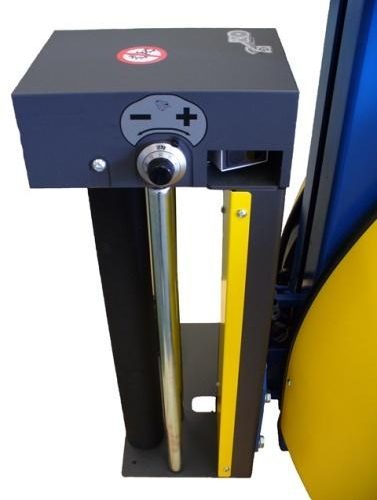

  • Pre-stretching unit:

    Mechanics (20 – 70% tension) – FR330
    Electromagnetic (jusqu’à 100%) – FR350

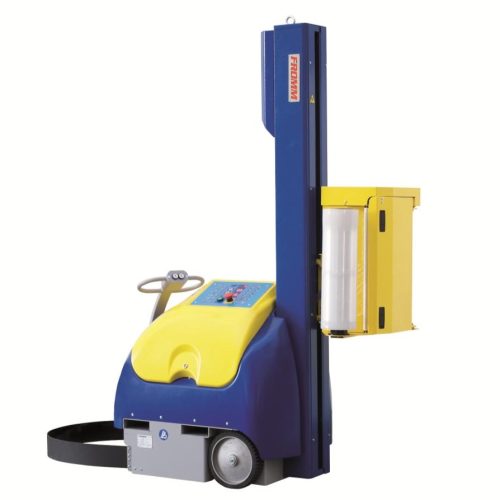

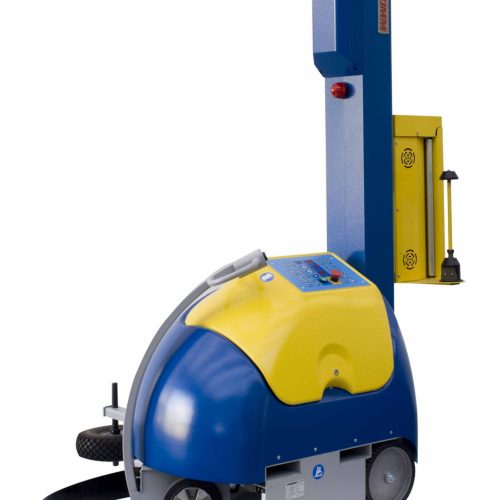

WRAPPING ROBOT FR39X / FR40X

Characteristics

  • Dimension:

    1850 mm x 1280 mm

  • Power:

    2 batteries 12V – 110 Ah to maintenance-free gel
    230V simple phase / 1 kW – IP54

  • Accepted film type:

    « cast » or « blown » until 35 µ
    Coil (standard machine), dus diameter 250 mm,
    with Chuck ø 76 mm

  • Autonomy:

    150 / 180 pallets with charged batteries

  • Size min. palette:

    600 mm x 600 mm

  • Maximum pallet height:

    2100 mm

  • Space required:

    1150 mm around the pallet

  • Terms of use:

    5 ~ 45 °C

  • Security:

    Emergency stop very accessible
    Bumper soft obstacles
    Possibility of placing a flashing light that lights up during the cycle
    Audio signal before the start of the cycle

  • Other:

    Photocell for automatic detection of the height of pallet
    Spool controlled integrated chain to the mast (maintenance free)
    Starting and stopping progressive automatic return of the spool in starting
    position after each cycle
    Speed control by inverter adjustment of film recovery

  • Pre-stretching unit:

    1 motor (250%) – FR39X
    2 motors (120% – 400%) – FR40X
