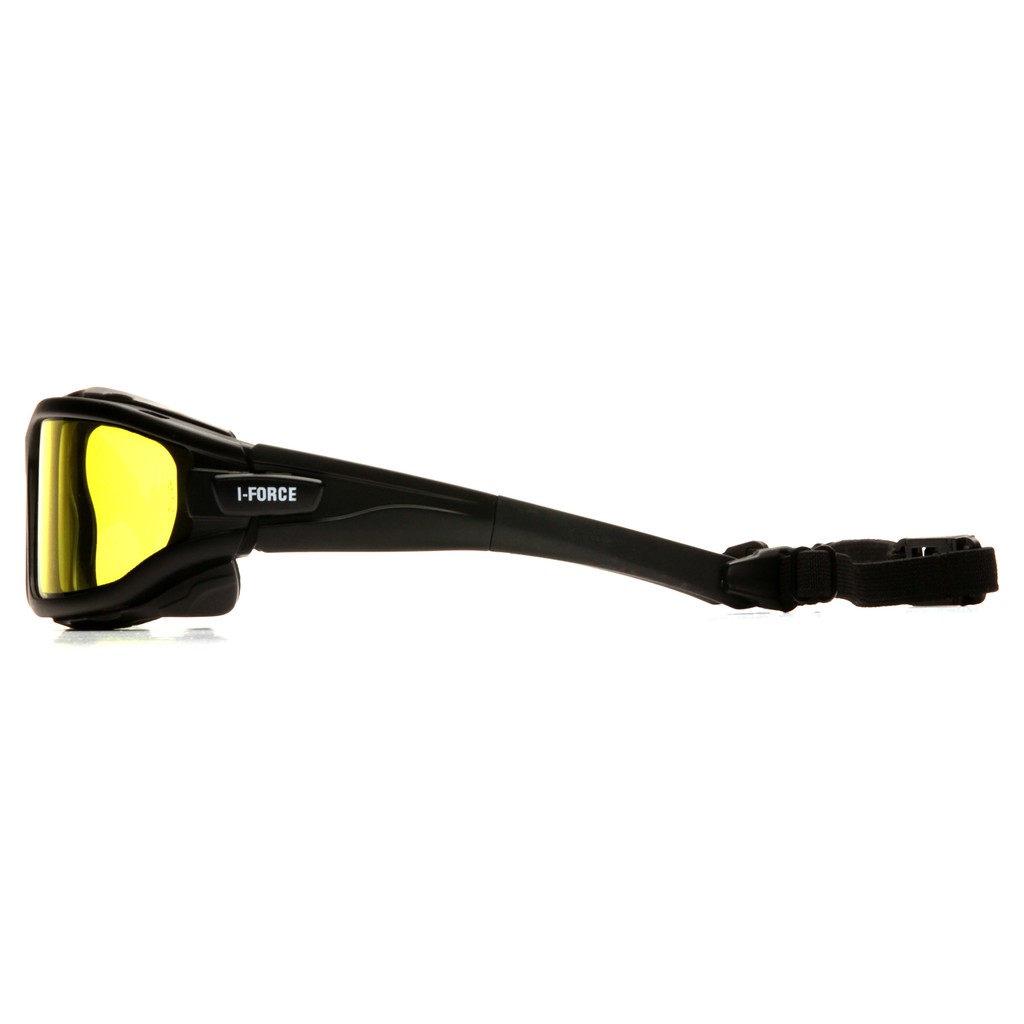

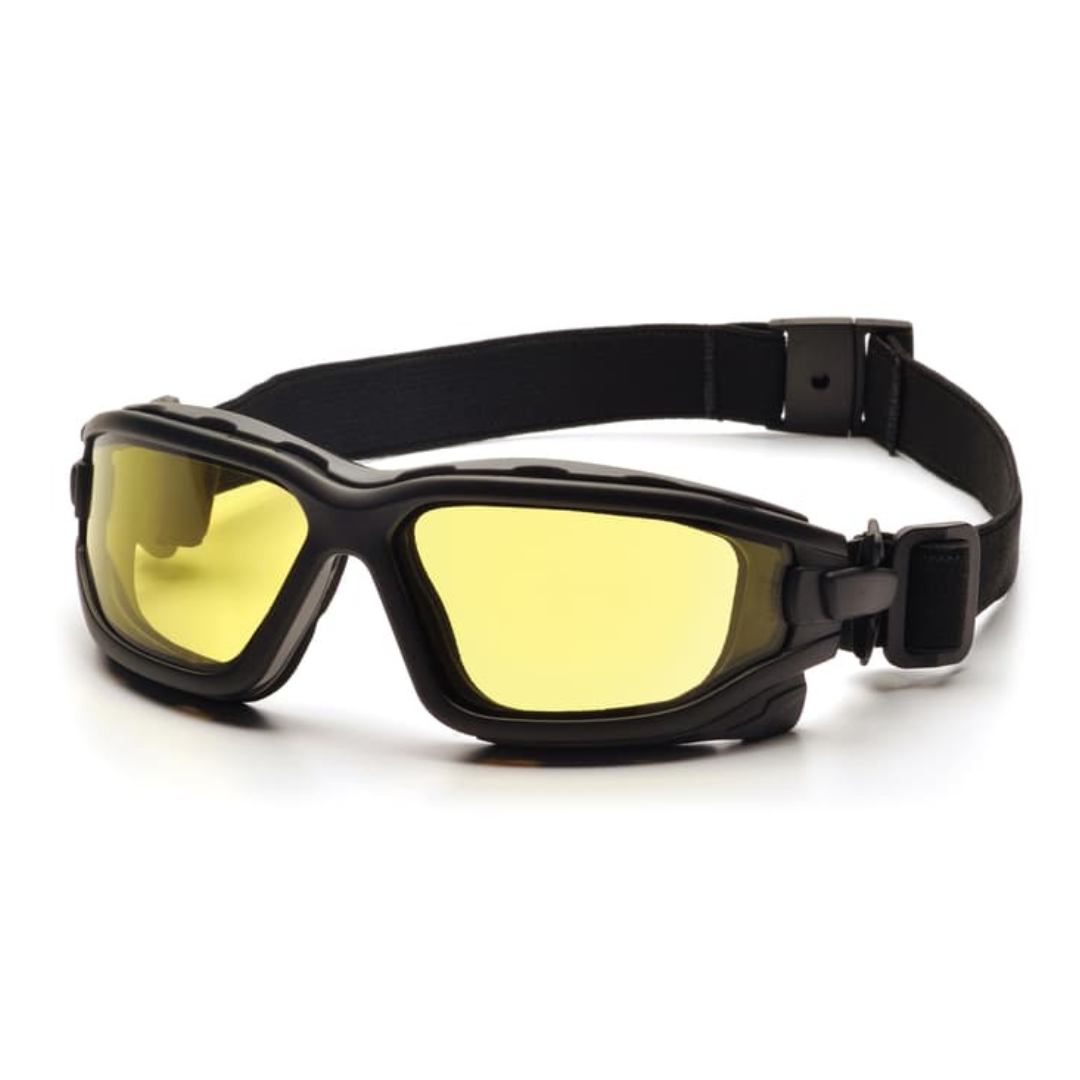

I-FORCE SB7030SDT Amber Dual Pane H2X Anti-Fog Lens with Black Temples/Strap

General Specifications:

  • Bridge: 14.5mm
  • Closest Point Between Lens: is 16mm
  • Closest Point Between Strap Holding Parts: Temples 148mm(98mm) / Strap Length 360mm
  • Lens Base: 8 Curve
  • Lens Size Diagonal: 72mm
  • Lens Size Vertical: 51mm
  • Lens Thickness: 1.8mm
  • Overall Length (Lens-Tip): 165mm
  • Overall Width: 165mm
  • PD: 68mm
  • Weight: 47gm (Goggles) 48gm (Spectacle)

Packaging:

  • Polybag: 1pc
  • Inner Box: 12 pcs
  • Case: 144 pcs

Materials :

– Lens: polycarbonate + acetate
– Foam: chloroprene rubber foam
– Nosepiece: chloroprene rubber foam
– Front carriage: nylon
– Foam frame: nylon
– Google + Temple strap: polyester
– Hinge: polycarbonate
– Ratchet: polycarbonate
– Temples: polycarbonate
– Temple tips: nylon
– Temple strap holder: nylon



Lens Marking : P Z87+S

Lens Marking Symbols:
– P: Manufacturer’s mark
– Z87: ANSI standard for eye and face
– protection devices
– +: High impact
– UV Filter Transmittance
– U6: .01% max effective far UV • .1% max near UV
Visible Light Filters :
– L1.3: 85% Max. Visible Light
– L1.7: 55% Max. Visible Light
– L2.5: 29% max visible light



Temple Marking : P Z87 + / P c SEI CAN/CSA Z94.3-15

Temple Marking Symbols :
– P: Manufacturer’s mark
– Z87: ANSI standard for eye and face
– protection devices
– +: High impact.

Description

  • Ratcheting Quick Release interchangeable temples and strap.
  • Vented foam carriage.
  • Scratch-resistant polycarbonate lens provides 99% UVA/B/C protection.
  • H2X anti-fog lenses.
  • Dual pane lens provides the ultimate anti-fog performance.
  • The outer polycarbonate lens protects against the environment, while the inner acetate lens is designed to prevent fogging.
  • The outside lens is coated with H2X Anti-fog Technology.
  • Passes MIL-PRF 32432 High-Velocity Impact Standards.
Amber Lens: Commonly used in indoor, low-light applications. Enhances contrast.
Visible Light Transmitted
380-780nm
89%
UVA, UVB Blocked
200-380nm
99%
Blue Light Blocked
400-700nm
75%
IR Blocked
780-2000nm
18%



I-Force General Specifications :

  • Weight: 48 gm
  • PD: 68 mm
  • Bridge: 14.5 mm
  • Lens base: 8 curve
  • Lens size diagonal: 72 mm
  • Lens size vertical: 51 mm
  • Lens thickness: 1.8 mm
  • Overall length (lens – tip): 165 mm
  • Overall width (hinge – hinge): 165 mm
  • The closest point between the lens: is 16 mm.
