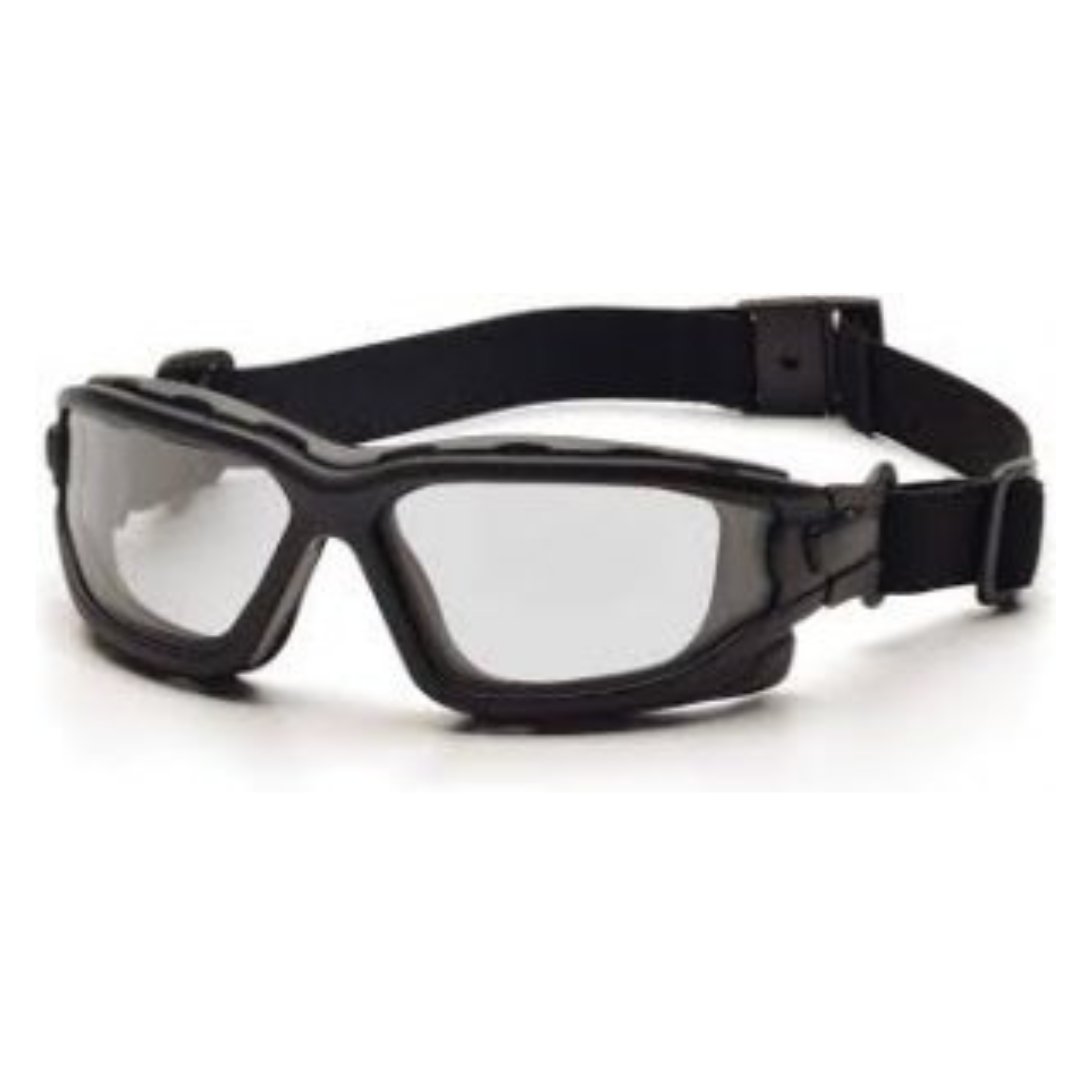

Clear H2X Anti-Fog Dual Pane

Features :

– Lens: polycarbonate + acetate
– Foam: chloroprene rubber foam
– Nosepiece: chloroprene rubber foam
– Front carriage: nylon
– Foam frame: nylon
– Google + Temple strap: polyester
– Hinge: polycarbonate
– Ratchet: polycarbonate
– Temples: polycarbonate
– Temple tips: nylon
– Temple strap holder: nylon

Lens Marking: 2C – 1.2 P 1 F N CE

Lens Marking Symbols :
– Code: field of use
– 2 or 3: UV filter
– 5 or 6: Solar filter
– Colour perception
– C: Unimpaired color perception
– Protection class
– 1.2 – 6: Degree of visible light filtration
– Optical class
– 1: high optical quality – no optical distortion
– Mechanical Strength
– F: Low energy impact, resists a 6 mm, .86
g at 45 m/s
Symbols :
– P: Manufacturer’s mark
– N: Filter with anti-fog
– CE: Europe standard

Temple Marking: CE P EN166 F

Temple Marking Symbols :
– CE: Europe standard
– P: Manufacturer’s mark
– EN166: CE specification for protective
eyewear :
– Mechanical Strength
– F: Low energy impact

General Specifications

  • Weight: 47.5 gm
  • PD: 64 mm
  • Bridge: 14.5 mm
  • Lens base: 8 curve
  • Lens size diagonal: 67 mm
  • Lens size vertical: 51 mm
  • Lens thickness: 1.8 mm
  • Overall length (lens to tip): 160 mm
  • Overall width (hinged to hinge): 144 mm
  • The closest point between the lenses is 16 mm.

Packaging:

  • Polybag: 1pc
  • Inner Box: 12 pcs.
  • Case: 144 pcs.
Categories: , Tag:

Description

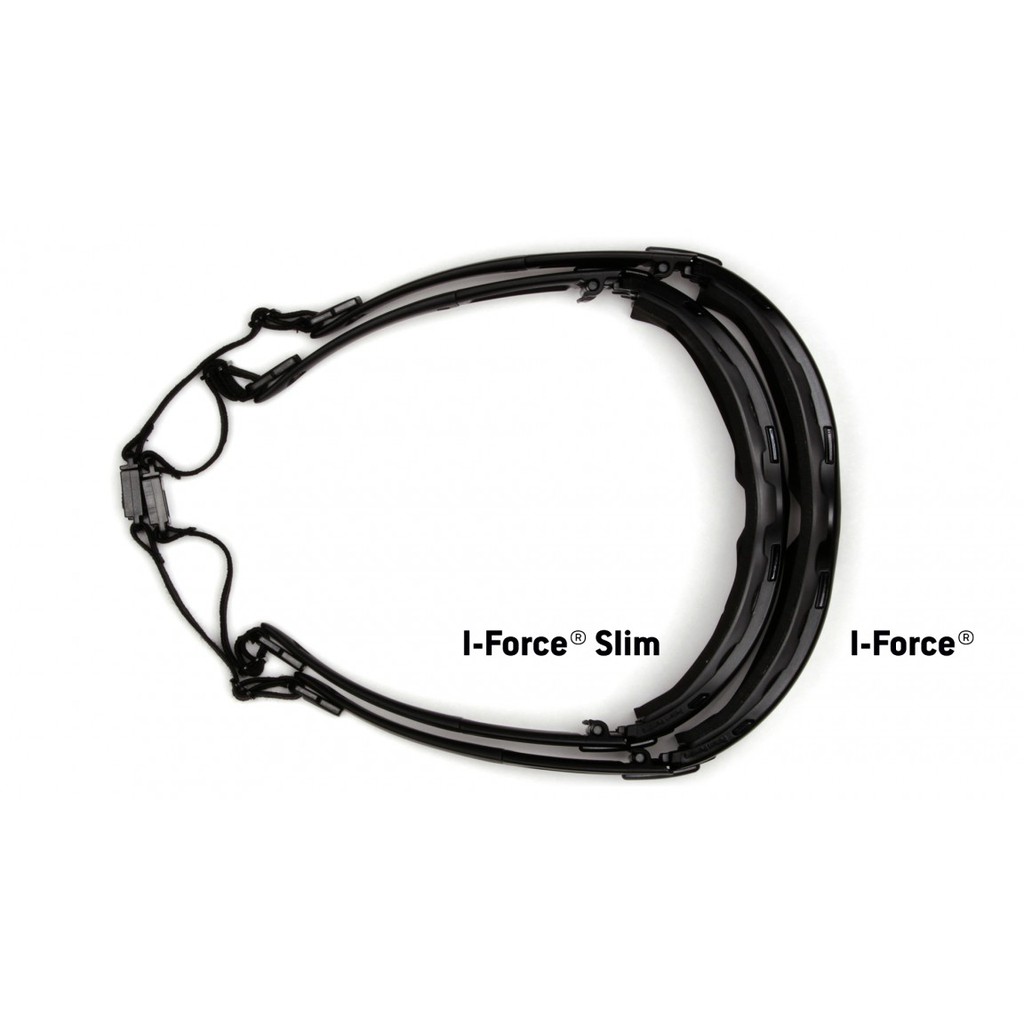

  • Designed for slimmer faces, the I-Force Slim is about 6% smaller than the I-Force
  • Interchangeable temples and straps with ratcheting quick releases
  • Vented foam carriage
  • Scratch-resistant polycarbonate lenses provide 99% UVA, B, and C protection.
  • H2X anti-fog lenses
  • Dual-pane lenses provide the ultimate anti-fog performance.
  • The outer polycarbonate lens protects against the environment, while the inner acetate lens is designed to prevent fogging.

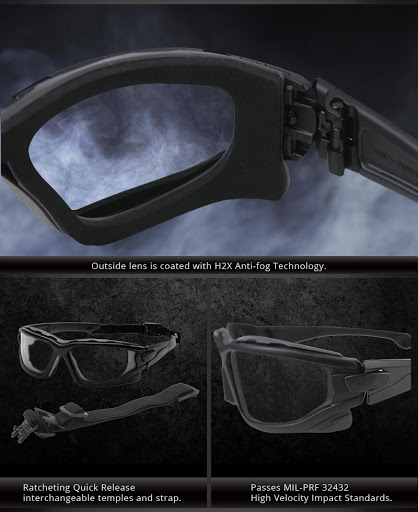

  • The outside lens is coated with H2X anti-fog technology.
  • passes MIL-PRF 32432 high-velocity impact standards
Amber Lens: Commonly used in indoor, low-light applications. Enhances contrast.
Visible Light Transmitted
380-780nm		 89%
UVA, UVB Blocked
200-380nm		 99%
Blue Light Blocked
400-700nm		 75%
IR Blocked
780-2000nm		 18%



Materials

Lens: polycarbonate and acetate
Foam: chloroprene rubber foam
Nosepiece: chloroprene rubber foam
Front carriage: nylon
Foam frame: nylon
Polyester Temple Strap + Google
Hinge: polycarbonate
Ratchet: polycarbonate
Temples: polycarbonate
Temple tips: nylon
Temple strap holder: nylon

Markings on the lens: 2C-1.2 P-1 F-N-CE

Lens Marking Symbols
Code: field of use
2 or 3: UV filter
5 or 6: Solar filter
Color perception
C: Unimpaired color perception
Protection class
1.2–6: Degree of visible light filtration
Optical class
1: High optical quality with no optical distortion
Mechanical Strength
F: Low energy impact; can withstand a 6 mm (.86) impact.
g at 45 m/s
Symbols
P: Manufacturer’s mark
N: Filter with anti-fog
CE: Europe’s standard

CE P EN 166 F Temple Marking

Temple Marking Symbols
Symbols
CE: Europe’s standard
P: Manufacturer’s mark
EN166: CE specification for protective
eyewear
Mechanical Strength
F: Low energy impact
