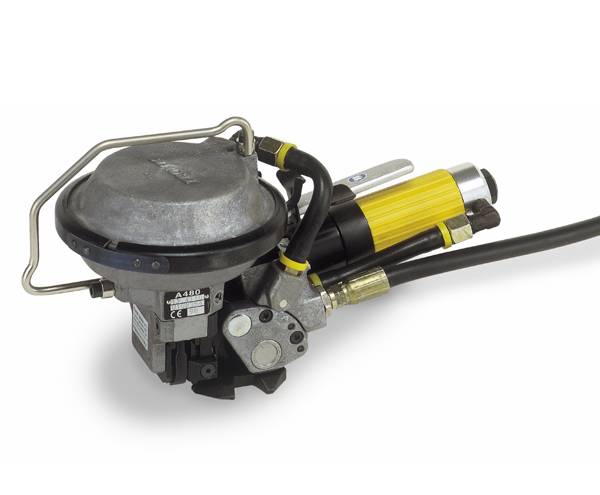

A480 Pneumatic Steel Strapping Tool

DESCRIPTION

Due to its low weight, the A480 does not necessarily have to be suspended. This permits more mobile operation. Ideal for strapping tubes, wire coils, and all kinds of small bundles, it is a handy and popular tool in numerous industries. Available in two different tensioning levels.

  • Strap qualities:

    Regular duty steel strap (Uniflex) up to 850 N/mm²
    High tensile steel strap (Ultraflex) up to 1100 N/mm²

  • Strap dimensions:

    10.0 – 19.0 x 0.38 – 0.63 mm
    3/8 – ¾ x .015 – .025″

  • Sealing type:

    Metal seals

  • Strap tensions:

    2500 N, 4500 N

  • Weights:

    4.5 kg (with suspension bracket)

Categories: , ,

Description

A480 Pneumatic Steel Strapping Tool

very suitable for strapping bars, bundles, pipes, coils, and packages with a small surface.
If used for stationary operation, the tool may be suspended on a spring-loaded
balancer using a suspension bracket (see suspensions)

Strapping qualities: Uniflex and Ultraflex max. 1100 N/mm2 / 160’000 psi
Strapping dimensions:
widths = 10.0 – 19.0 mm / 3/8 – ¾”
thicknesses = 0.38 – 0.63 mm / .015 – .025″
Weight: 4.6 kg (10.1 lbs) with suspension
Tool sizes: L330 x W122 x H130 mm (13.0″ x 4.8″ x 5.1″).
Average seal strength: up to 75%
Type of seal: Overlap seals; see chart
Type of Joint: Single-notch joint
Suspensions (Optional): A suspension bracket for standard and vertical applications is supplied with the tool. A suspension bracket for horizontal and
vertical applications; have to be ordered separately, see accessories

.
