Showing 33–48 of 184 results

Danox Welding Machine – Dc500

MODEL DC – 500
Input Voltage (V) AC440 ±15%
Input voltage frequency (Hz) 50/60
Input power capacity (KVA) 33.2
Arc Force Current (A) 0-200
Output current (A) 40-500
Duty Cycle (%) 60
Weight (Kg) 20
Dimensions (mm) 515 x 262 x 468

Danox Welding Machine Arc-120

Description :

Danox ARC-120 (1ph / 230V) DC inverter are welding machine c/w:
• Electrode holder with 3m cable & male plug 10-25mm
• Earth clamp with 3m cable & male plug 10-25mm

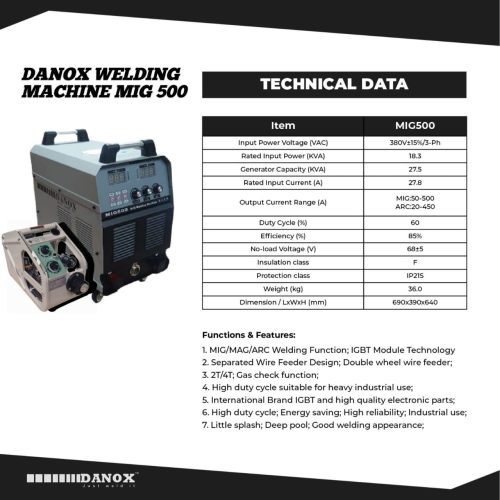

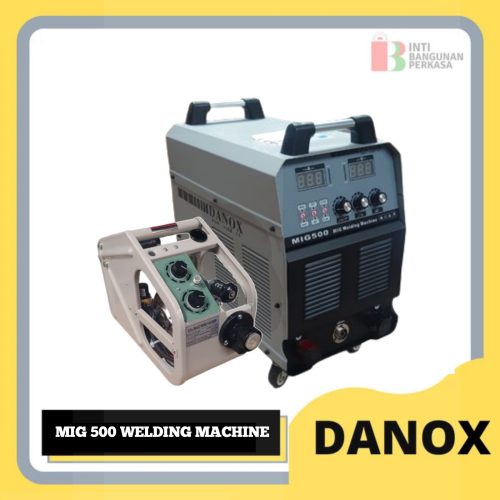

DANOX Welding Machine MIG 500

Specifications:
– Input Power Voltage (VAC) : 380V±15%/3-Ph
– Rated Input Power (KVA) : 18.3
– Generator Capacity (KVA) : 27.5
– Rated Input Current (A) : 27.8
– Output Current Range (A) : MIG:50-500; ARC:20-450
– Duty Cycle (%) : 60%
– Efficiency (%) : 85%
– No-load Voltage (V) : 68±5
– Insulation Class : F
– Protection Class : IP21S
– Weight (Kg) : 36Kg
– Dimension/ LxWxH (mm) : 690x390x640



Danox Welding Machine– Arc500S

MODEL ARC-500S
Input Voltage (V) AC415 ±15%
Input voltage frequency (Hz) 50/60
Input power capacity (KVA) 25
Arc Force Current (A) 0-200
Output current (A) 40-500
Duty Cycle (%) 85
Weight (Kg) 45
Dimensions (mm) 555 x 350 x 505
Efficiency (%) 85
Protection Class IP21S

DC Arc Welding Machine – ARC-250

MODEL ARC-250
Input power voltage (V) AC415 ± 15% (3 Ph)
Input power capacity (KVA) 8.3
Input voltage frequency (Hz) 50/60
No load voltage (V) 67
Output current (A) 20 – 225
Arc force current (A) 0.60
Output voltage (V) 29
Duty cycle (%) 60
Efficiency (%) 85
Insulation class F
Weight (kg) 17.2
Dimensions, mm (L/W/H) 480/205/355
Protection class IP21S
Weldable (mm) 2.5 – 4.0



OPTIONAL :
– Electrode Holder
– Earth Clamp
– Welding Cable
– Scratch TIG Torch
– Argon Regulator
– Current Remote Controller



AVAILABLE ACCESSORY :
– Cable Connector standard 2pcs 35/50





Earth Clamp (300A / 500A)

Features  SOLAR WELDING GLASSES
1 Strong construction with a heavy-duty spring that provides a firm grip on the job material
2 prevent slippage and assures continuity of earth connection
3 Available on screw type and from 300A to 600A

Erfi Mega Inverter – 2600

Product Details
Input Voltage (V) 1x230V (±10%)
Input Power (KVA) 10.4
Frequency (Hz) 50/60
Output Current (A) 260
Arc Force Current (A) 0-200
Duty Cycle (%) 60
Weight (Kg) 9.5
Dimensions (mm) 490 x 180 x 330
Protection class IP23

Flame Welding & Cutting Machine – Electricity Only No Oxygen & Acetylene Needed – PFG-1000W

Product Details
External supply voltage (one-phase) (V) 100 – 250
External supply frequency (Hz) 50-60
Max power (under the condition of 250V) 1.0
Max power (under the condition of 100V) 0.6
Host weight (Kg) 14 .6
Torch weight (Kg) 0.9
Safe no-load voltage (V)  –
Working Voltage (V) 27-33
Duty Cycle (%) 100
Host outsize: L x H x W (mm) 470x270x220
Torch outsize: L x H x W (mm) 210x215x60
Machine power cord length (m) 1.62
Torch cord length (m) 3
Welding type Flame welding
Flame temperature (ºC) 4200~9500
Cutting capabilities (regular steel) (mm) up to 3/8(10)
Welding capabilities (regular steel) (mm) from 1/64 (0.4) up to 2 (15)



Floor Type Electrode Oven – A-200MS

Product Details
Electrode Capacity (Kg) 200
Temperature Range (ºC) 50 – 400
Input Voltage (V) AC220/415
External Dimension (mm) 790 × 718 × 1260
Internal Dimension (mm) 680 x 578 x 1010
Body Insulation (Rock Wool) 50mm / 2″
Weight (Kg) 175

Floor Type Electrode Oven – A-450MS

Product Details
Electrode Capacity (Kg) 450
Temperature Range (ºC) 50 – 400
Input Voltage (V) AC220/415
External Dimension (mm) 1445 × 775 × 1460
Internal Dimension (mm) 1335 x 635 x 1210
Body Insulation (Rock Wool) 50mm / 2″
Weight (Kg) 300

Floor Type Electrode Oven – A-50MS

Product Details
Electrode Capacity (Kg) 50
Temperature Range (ºC) 50 – 400
Input Voltage (V) AC220
External Dimension (mm) 660 x 420 x 410
Internal Dimension (mm) 550 x 290 × 270
Body Insulation (Rock Wool) 50mm / 2″
Weight (Kg) 36

Gas Cutting Equipments – CG2-150 – (Template Cutter)

Product Details
Input Voltage (V) AC220V ±15%
Cutting Thickness (mm) 6-100
Cutting Speed (mm/min) 50-750
Circle Diameter (mm) 600
Rectangle Size (mm) 400 x 900 x 450 x 750
Dimensions (mm) 1190 x 335 x 800
Weight (Kg) 56.5
