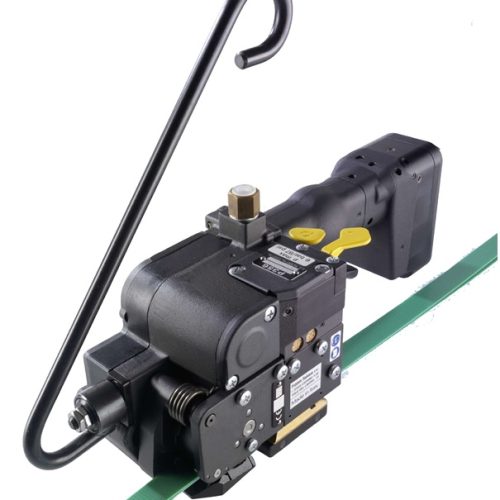

P356

Features :

  • Strap qualities:

    Polyester (PET)

  • Strap dimensions:

    widths = 16.0 – 19.0 mm / 5/8 – 3/4”

  • Thickness:

    0.40 – 1.35 mm / .016 – .053”

  • Average seal strength:

    approx. 75% of strap breaking strength (dependent on strap quality)

  • Type of seal:

    Friction weld sealing

  • Tension:

    800 – 3700 N / 180 – 830 lbs (adjustable)
    (max tension is dependent on strap quality

  • Tension speed:

    approx. 250 mm/s / 10 inch/s

  • Weight:

    5.4 kg / 11.9 lbs

P359

Features :

  • Strap qualities:

    Polyester (PET) and Polypropylene (PP)

  • Strap dimensions:

    19.0 – 32.0 x 0.60 – 1.53 mm
    3/4 – 1 1/4 x .023 – .060″

  • Average seal strength:

    up to 75% (dependent on strap quality)

  • Tension:

    2000 – 3500 N / 450 – 787 lbs (adjustable) resp.
    4000 – 7000 N / 900 – 1575 lbs (adjustable)

  • Tension speed:

    120 mm/s / 4.7 inch/s resp.
    60 mm/s / 2.4 inch/s

  • Max air pressure:

    6.0 bar / 87 psi

  • Weight:

    8.9 KG / 19.6 lbs (including suspension bracket)

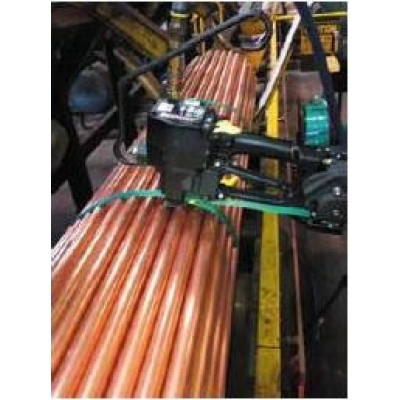

P380

Features :

  • Strap qualities:

    Polyester (PET) and Polypropylene (PP)

  • Strap dimensions:

    Width: 13.0 – 19.0 mm
    Thickness: 0.40 – 1.35 mm

  • Average seal strength:

    up to 75% (depending on strap quality)

  • Type of seal:

    Friction weld sealing

  • Tension:

    600 – 1800 N (adjustable)

  • Tension speed:

    120 – 260 mm/s / 4.7 – 10.2 inch/s

  • Max air pressure:

    6.0 bar / 87 psi

  • Weight:

    6.8 KG / 15 lbs (include suspension bracket)

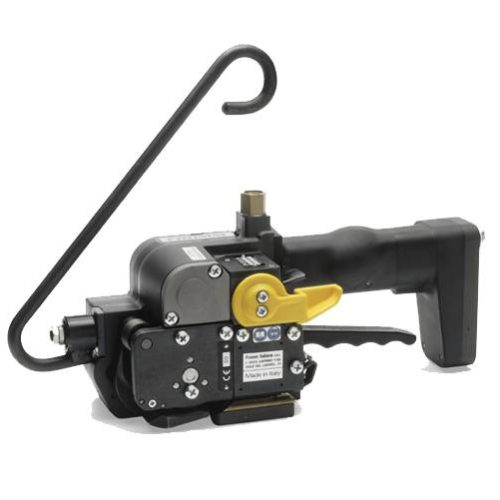

P355

Features :

  • Strap qualities:

    Polypropylene (PP) and Polyester (PET)

  • Strap dimensions:

    widths = 10.0 – 16.0 mm / 3/8 – 5/8”
    Thickness = 0.40 – 1.05 mm / .016 – .041”

  • Average seal strength:

    approx. 75% of strap breaking strength

  • Type of seal:

    Friction weld sealing

  • Tension:

    400 – 2100 N / 90 – 470 lbs, adjustable

  • Tension speed:

    approx. 250 mm / s / 10 inch / s

  • Weight:

    4.75 kg / 10.5 lbs
